NGP 513 Aluminum Saddle Threshold 5" x 1/4"
National Guard Products 513 Saddle Threshold

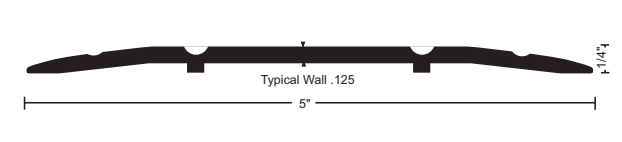

Features & Specifications of the NGP 513 Saddle Threshold:
- Base Material: Aluminum Alloy 6063, T5 Temper
-
Typical Wall Thickness: .125"
- Fasteners: #10 x 1 1/2" FH Zinc Plated Wood Screws Included.
- Top: Fluted
- Width: 5"
- Profile Height: 1/4"
-
Finish:

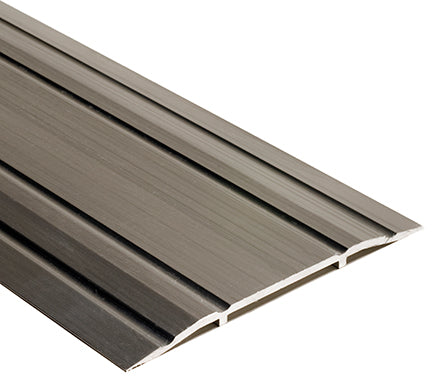

- Mill Aluminum

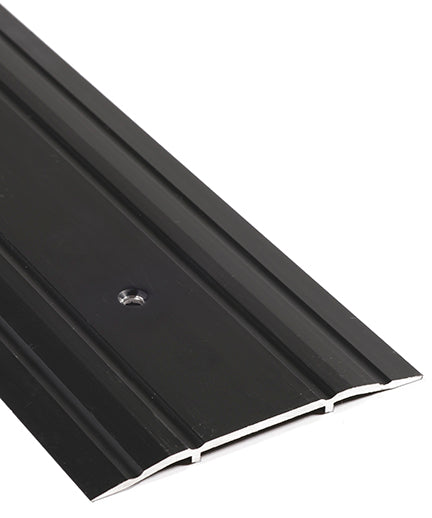

- Dark Bronze Aluminum
-
Optional SIA Slip-Resistant Finish Recommended in Moisture Prone Areas
- Contact MDI for special price quote on SIA finish.
Certifications:
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
-
ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Availability: Usually Ships in 5-7 Business Days
