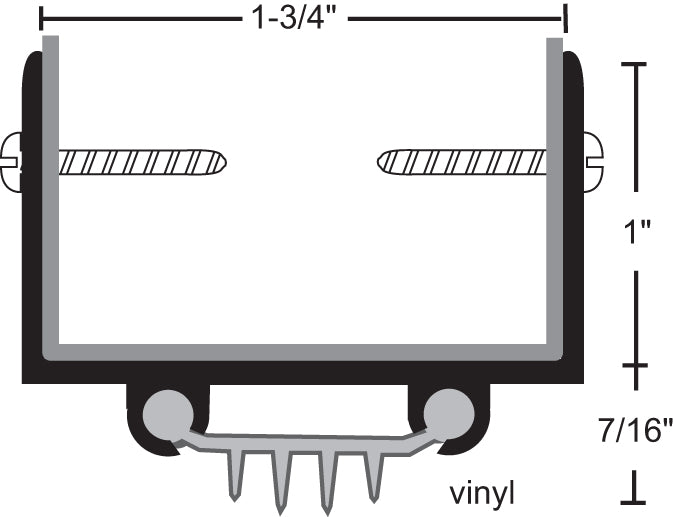

NGP 36V Finned Vinyl Door Shoe x 1", for a 1 3/4" thick door

NGP 36V Finned Vinyl Door Shoe x 1", for a 1 3/4" thick door

Features of the 36V Finned Vinyl Door Shoe x 1":

• Aluminum Alloy 6063, T5 Temper
• Thermo-Plastic Vulcanizate (TPV)
• Economical
• Flame resistant
• Moisture-Resistant
• Temperature Range -40°F to 250°F
• #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
• Screw Holes Slotted for Adjustment
• For use on a 1 3/4" thick door
• Vinyl is Black
• Anodized Aluminum

Certifications:

• CERTIFIED: by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• POSITIVE PRESSURE: - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• AIR INFILTRATION TESTED to ASTM E283:  Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
• SMOKE & DRAFT CONTROL GASKETING: Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

• Available Finish:

  • Anodized Aluminum
  • Dark Bronze Aluminum

• Lead-Time:
  • Usually Ships within 3-5 business days
