NGP 203N Aluminum Door Sweep w/ 2" Neoprene Seal

NGP 203N Aluminum Door Sweep w/ 2" Neoprene Seal

NGP - National Guard Products

SKU: NGP-203NA-36

Availability : Usually Ships in 3-5 Business Days

$42.90
$42.90
Sale Sold out
Shipping calculated at checkout.

Product Options:
Item Type: Surface Applied Door Sweep
Buyer Note:: This item is special order. Once ordered this item cannot be canceled, returned or exchanged.

Click here for a Cut Sheet on the NGP 203N

Click here for Installation on the NGP 203N

View full details

NGP 203N Aluminum Door Sweep w/ 2" Neoprene Seal Information

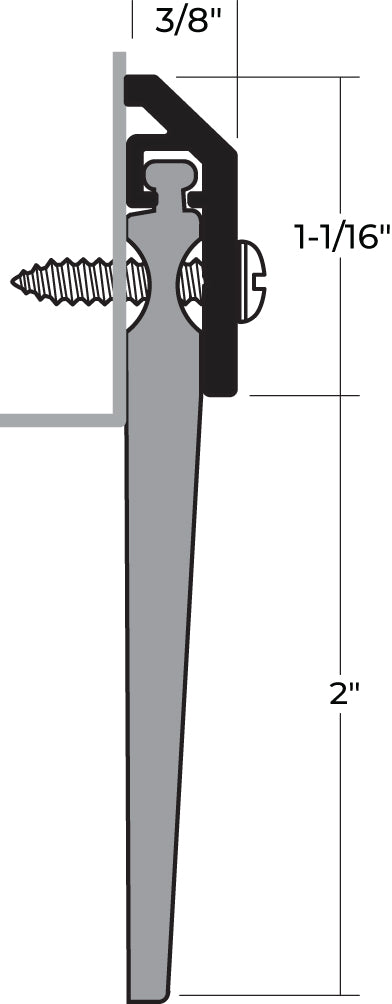

NGP 203N Aluminum Door Sweep w/ 2" Neoprene Seal

Features of the NGP 203N Aluminum Door Sweep w/ 2" Neoprene Seal

  • Aluminum Alloy 6063, T5 Temper
  • Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
  • Very Good Abrasion Resistance, Tensile Strength and Memory
  • Moisture-Resistant
  • Temperature Range -81°F to 275°F
  • Good Resistance to Ozone, Sunlight and Aging
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
  • #6 x 1" Stainless Steel SMS Furnished
  • Screw Holes Slotted for Adjustment
  • 2" Neoprene Seal Gasket
  • Neoprene is Black

 Certification:

  • AIR INFILTRATION TESTED to ASTM E283:  Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

  • ANSI/BHMA CERTIFIED: Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

  • Available Finish:
    - Anodized Aluminum w/ Black Neoprene Seal
    - Dark Bronze Aluminum w/ Black Neoprene Seal

    Lead-Time:
    - Usually Ships within 3-5 business days
