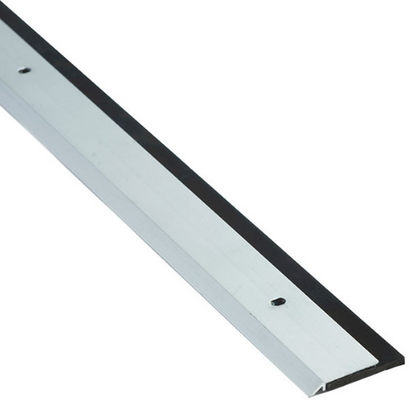

NGP 200N Surface Door Sweep with Neoprene Rubber Seal Information
NGP 200N Surface Applied Door Sweep with Neoprene Rubber Seal
Features of the NGP 200N Surface Door Sweep:
Aluminum Alloy 6063, T5 Temper
Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
Very Good Abrasion Resistance, Tensile Strength and Memory
Flame-Resistant
Moisture-Resistant
Temperature Range -81°F to 275°F
Good Resistance to Ozone, Sunlight and Aging
BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
#6 x 3/4" Stainless Steel SMS Furnished
Screw Holes Slotted for Adjustment
Neoprene is Black
Certifications:
CERTIFIED: by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE: - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283: Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
SMOKE & DRAFT CONTROL GASKETING: Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED: Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Available Finish:
Anodized Aluminum w/ Black Rubber Neoprene Seal
Dark Bronze Aluminum w/ Black Rubber Neoprene Seal
