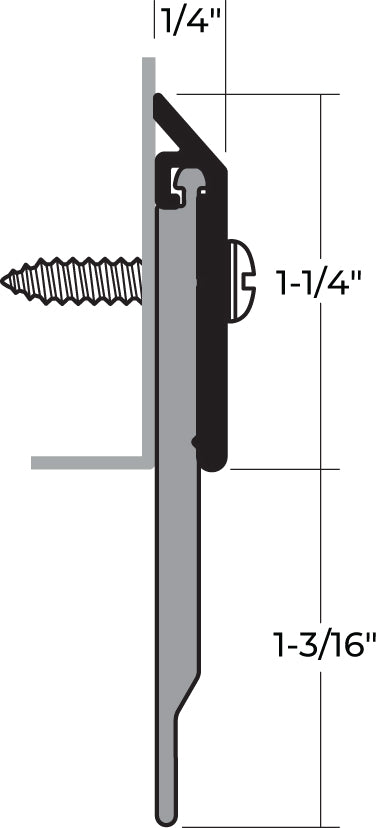

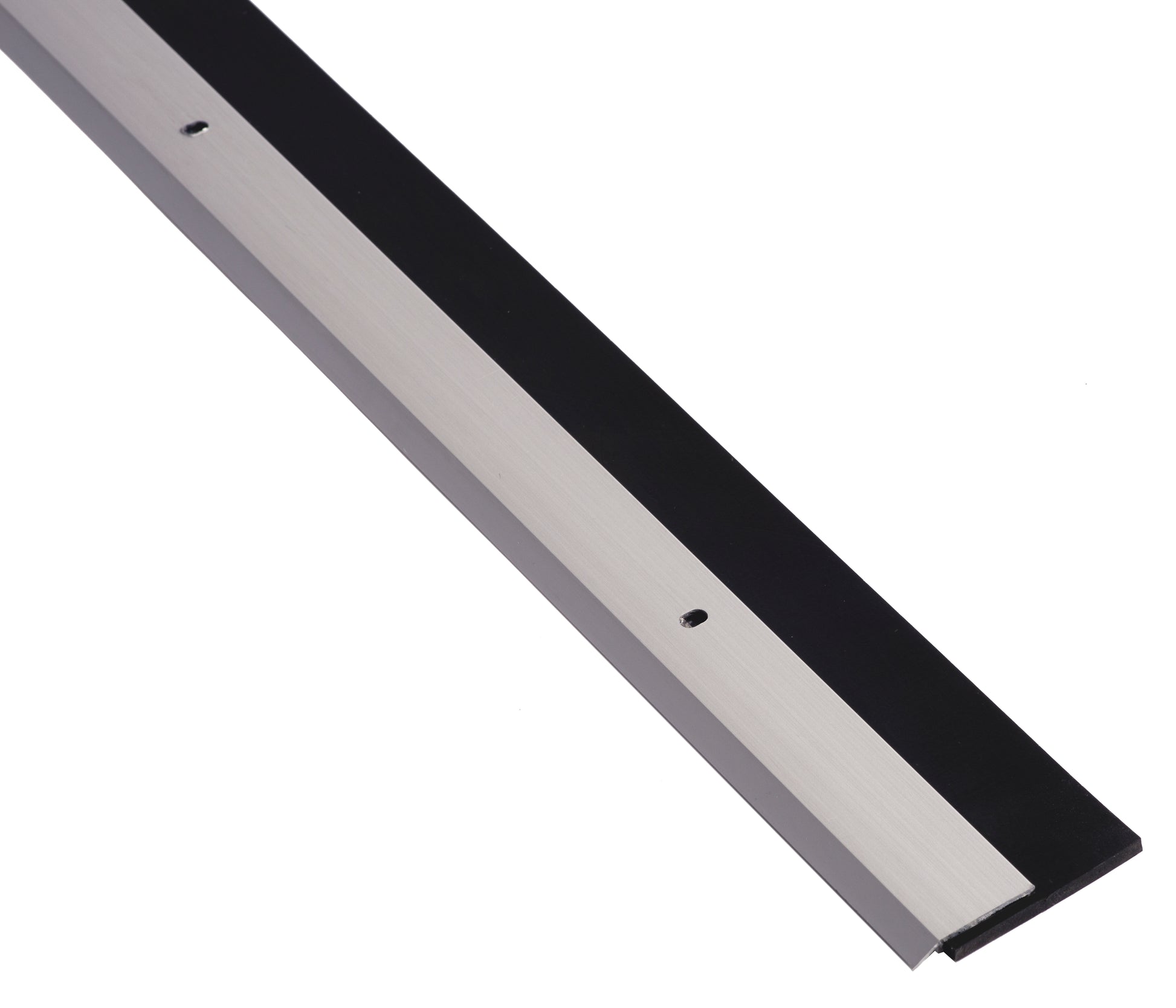

NGP 199N Series Anodized Aluminum Surface Door Sweep w/ 1 3/16" Neoprene Seal

NGP 199N Series Anodized Aluminum Door Sweep w/ 1 3/16" Neoprene Seal

Features of the NGP 199 Series Anodized Aluminum Door Sweep w/ 1 3/16" Neoprene Seal

• Aluminum Alloy 6063, T5 Temper
• Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
• Very Good Abrasion Resistance, Tensile Strength and Memory
• Flame-Resistant
• Moisture-Resistant
• Temperature Range -81°F to 275°F
• Good Resistance to Ozone, Sunlight and Aging
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• #6 x 3/4" Stainless Steel SMS Furnished
• Screw Holes Slotted for Adjustment
• Neoprene is Black

• Anodized Aluminum

 Certification:

• AIR INFILTRATION TESTED to ASTM E283:  Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

• POSITIVE PRESSURE: CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

• SMOKE & DRAFT CONTROL GASKETING: Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

• ANSI Certified: UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

• Available Finish:
  - Anodized Aluminum w/ Black Neoprene Seal
  - Dark Bronze Aluminum w/ Black Neoprene Seal

  Lead-Time:
  - Usually Ships within 3-5 business days
