• Door Edge Filler Plate (For Mortise Edge), 1 1/4 inch x 8 inch, Prime-Painted, w/ Machine Screws main image
1 1

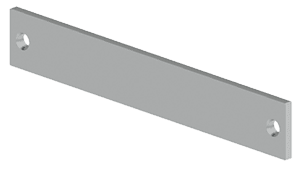

Rockwood DF86 Door Edge Filler Plate (For Mortise Edge Prep Doors), 1 1/4 inch x 8 inch, Prime-Painted, w/ Machine Screws Included

Rockwood DF86 Door Edge Filler Plate (For Mortise Edge Prep Doors), 1 1/4 inch x 8 inch, Prime-Painted, w/ Machine Screws Included

Rockwood Manufacturing

SKU: RKWD-DF86-USP

Availability : Usually ships the next business day

$7.00
$19.00 $7.00
Sale Sold out
Shipping calculated at checkout.
View full details

Rockwood DF86 Door Edge Filler Plate (For Mortise Edge Prep Doors), 1 1/4 inch x 8 inch, Prime-Painted, w/ Machine Screws Included Information

Door Edge (Mortise Edge) Filler Plate
This mortise edge blank plate can be used to fill the typical 1 1/4" x 8" mortise edge prep commonly found in commercial doors.  It is most commonly used on standard commercial hollow metal doors and frames to fill the mortise edge prep.

Product details of the Mortise Edge Filler Plate

Application: Used to fill a typical mortise edge prep.
Size 1 1/4" x 8" (32 mm x 203 mm)

Thickness:

 0.180" (5 mm)

Material:

Steel.

Common Use:

 Typically used on commercial HM doors to fill-in the Gov. 86 Mortise Edge prep.

Fasteners Included:

 Yes, Two (2) 12-24 machine screws included with each plate.
Finish: Prime-painted gray.
Sold As: Sold individually.
MDI Supply # RKWD-DF86
  Mortise Edge Filler Plate for a Gov. Series 86 Edge Mortise Lock
