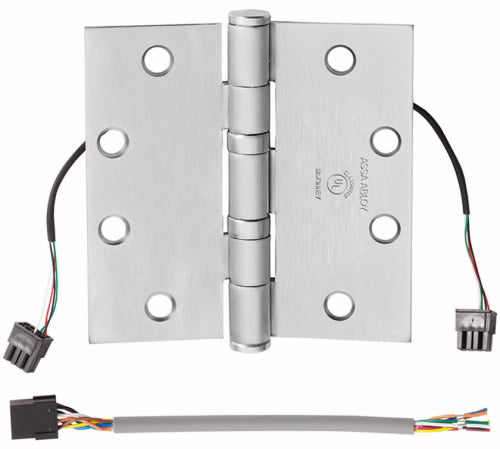

• McKinney TA2714-US26D-QC8 4.5 inch x 4.5 inch 8-Wire Electric Hinge, US26D-Satin Chrome main image
1 1

McKinney TA2714-US26D-QC8 4.5 inch x 4.5 inch 8-Wire Electric Hinge, US26D-Satin Chrome

McKinney TA2714-US26D-QC8 4.5 inch x 4.5 inch 8-Wire Electric Hinge, US26D-Satin Chrome

McKinney Hinges

SKU: MCK-TA2714-4545-26D-QC8

Availability : Usually ships in 2-3 business days

$189.00
$569.00 $189.00
Sale Sold out
Shipping calculated at checkout.
Size: 4.inch x 4.inch
Wires: 8-Wire - QC-8
Finish: US26D/62Satin Chrome
View full details

McKinney TA2714-US26D-QC8 4.5 inch x 4.5 inch 8-Wire Electric Hinge, US26D-Satin Chrome Information

McKinney TA2714 4.5-inch x 4.5-inch 8-wire Electric Hinge
Each hinge features concealed plug connectors (QC) that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.

Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening

PLEASE NOTE:
This is an original McKinney manufactured electrified hinge and it has not been modified by an aftermarket company!

Details and product specs of the McKinney TA2714-US26D-QC Electric Hinge:

Material: Brass, stainless steel, and steel
Wires: For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used. A molex connector is at the end of each wire.  A pigtail is provided for connection to the source wiring.
Size: 4 1/2" x 4 1/2" x .134 (standard weight)
Knuckle: 5-Knucke Hinge
Finish Available:

US26D/626 - Satin Chrome
Installation: Electric hinges should be installed to the center position hinge on the door. Installation instructions are packed with each hinge.
Quality Assurance: Hinges are factory tested and specially packaged to minimize against damage during shipment.  This hinge is also UL Listed and is manufactured in accordance with ANSI A250.13-2003 Windstorm.
Mfg Model #: TA2714 QC8
MDI Supply Item #: MCK-TA2714-26D-QC8
Packaged & Sold: Individually (1-Hinge Per Box)
