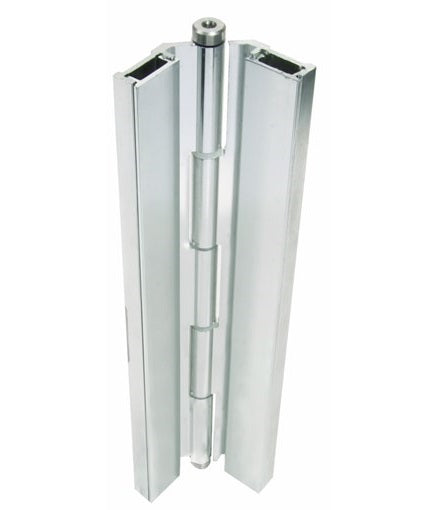

• Markar FS402TP-54 Flush Full Surface Toilet Partition Hinge, 54-inch length, Spring Loaded, 628-Clear Anodized Alum main image
  • Image 2

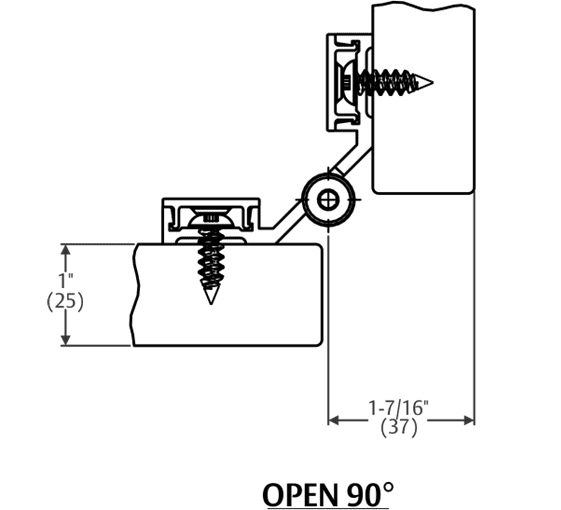

  • Image 3
1 3

Markar FS402TP-54 Flush Full Surface Toilet Partition Hinge, 54-inch length, Spring Loaded, 628-Clear Anodized Alum

Markar FS402TP-54 Flush Full Surface Toilet Partition Hinge, 54-inch length, Spring Loaded, 628-Clear Anodized Alum

Markar Products

SKU: MAR-FS402TP-54-628

$450.00
$999.00 $450.00
Sale Sold out
Shipping calculated at checkout.
Length: 5inch
Finish: 628-Clear Anodized Aluminum
View full details

Markar FS402TP-54 Flush Full Surface Toilet Partition Hinge, 54-inch length, Spring Loaded, 628-Clear Anodized Alum Information

Markar FS402TP Toilet Partition Hinge 54-inch
The Markar FS402 Spring Loaded Flush Mount Full Surface Hinge is ideal for damp or corrosive environments. This aluminum toilet partition hinge distributes stress along the entire length of the door and eliminates the gap or sightline at the hinge edge.

- Spring-loaded barrel type hinge
- 6063-T6 aluminum alloy
- Covers - extruded aluminum
- Non-handed (Use the same hinge for right handed or left-handed doors)
- Close door weighing up to 80 lbs
- USA patent no. 4823437
- Canadian patent no. 1303804
- For doors up to 36" wide.  Please contact MDI if your door is wider that 36".

Details and product specs of the Markar FS402TP Partition Hinge:

Brand Markar (An Assa Abloy Group Brand Company)
Application/Type Toilet Partition Hinge / Full Surface & Spring Loaded
Finishes Available 628 - Clear Anodized Aluminum (Standard-Most Common Finish).
311 - Light Bronze Anodized (Call Office).
313 - Dark Bronze (Call Office).
315 - Black Anodized (Call Office).
US Patent USA patent no. 4823437
Canadian Patent

Canadian patent no. 1303804
Handing Non-Handed
Self-Closing

Spring Loaded Barrel Type
Adjustable Torx tip cap to adjust spring tension.  Adjust tension on door to close tightly for out-swinging ADA compliance
Hardware  Mounting Hardware:  1/4" x 20 pan head pan head machine screws concealed by cover caps
MDI Item # MAR-FS402TP-54-628
Packaged & Sold:  Individually



Markar FS402TP Toilet Partition Hinge 54-inch
The Markar FS402 Spring Loaded Flush Mount Full Surface Hinge is ideal for damp or corrosive environments. This aluminum toilet partition hinge distributes stress along the entire length of the door and eliminates the gap or sightline at the hinge edge.
