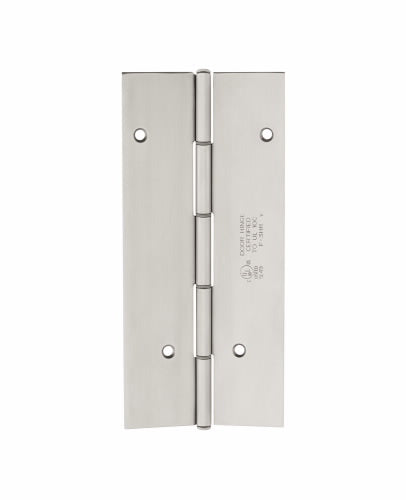

Markar FM300-79 Edge Mounted Satin Stainless Steel 14 Gauge Continuous Hinge, 79-inch

Markar FM300-79 Edge Mounted Satin Stainless Steel 14 Gauge Continuous Hinge, 79-inch

SKU: SKU:MAR-FM300-79

Availability : Usually Ships Next Business Day

Regular price $369.00
Regular price $1,100.00 Sale price $369.00
Sale Sold out
Shipping calculated at checkout.
View full details

Markar FM300 Edge Mount Hinge - For use on standard 80" doors
This edge-mounted pin & barrel hinge is used on many of today’s high traffic, high abuse doors. The hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. This hinge saves on special door and frame preparation charges and makes the installer’s job easier. It can be used on both fire labeled and non-labeled openings.

Markar FM300

  • 3/16" diameter barrel type hinges, 304 stainless steel pin (rod) Medical bearings. Exterior barrel diameter .438" (7/16")
  • Heavy-duty 14 gauge, 304 stainless steel, finished in US32D (630)
  • Fasteners concealed when door is closed. Fastener screwpack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
  • Supports door weight up to 600 lbs.
  • Max door width: 4'-0"
  • Lenth: 79.125"
  • Width: 2 1/4"

Standard Features of the Markar FM300 Series Continuous Hinge

Barrel Type Hinge .187" diameter Stainless Steel pin (rod)

Medical bearings Stainless Steel end pins

Material Heavy-duty 14 gauge Stainless Steel

Finishes US32D Satin Stainless Steel (630)

Standards ANSI/BHMA Standard A156.26 Grade 1

Hole Pattern Symmetrically templated

Mounting Hardware Fasteners concealed when door is closed

Custom 12-24 x 11/16" S.S Phillips Flat Head Undercut TEK Screws

Capacity Supports weights up to 600 lbs. 4'0" maximum door width

Standard Sizes 6'8", 7'0", 7'2", 8'0", 10'0".  For sizes not shown in our webiste, please contact us via phone, email or chat support.

Handing Non-handed.  Handing not required on standard size hinges. Specify handing when ordering a hinge with modification.

Rating 3 hours- hollow metal doors 90 minutes- hollow metal and composite core wood fire doors 20 minutes- wood doors.  UL Classified in accordance with UL10C for positive pressure.  WHI Fire-rated label.  Windstorm Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203- 94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13

Markar FM300 Edge Mount Hinge - For use on standard 80" doors
This edge-mounted pin & barrel hinge is used on many of today’s high traffic, high abuse doors. The hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. This hinge saves on special door and frame preparation charges and makes the installer’s job easier. It can be used on both fire labeled and non-labeled openings.

Markar FM300

Click here to download the cut sheet on the Markar FM300 Continuous Hinge

Click here to download Markar FM300 Installation Instructions
