Anemostat HM Clip

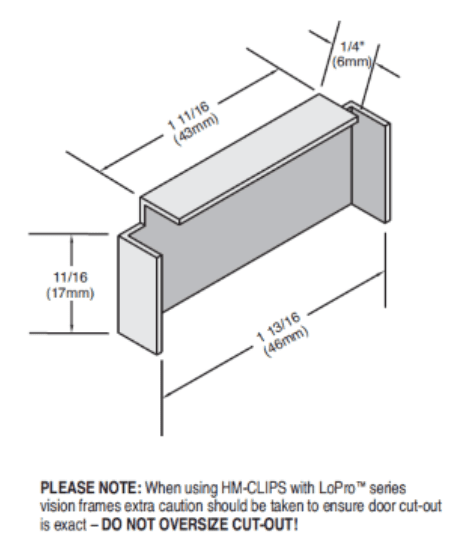

Hollow Metal door clips can be used in hollow metal doors, and replace the need for a reinforcing channel in all Anemostat vision frames and louvers when fitted to 1 3/4" (44mm) thick doors. They are manufactured from 20GA cold rolled steel. The clip is inserted between the door skins and then snapped into place, fitting flush with the door cut-out. The number of clips required will depend on the size of the cut-out. Please note that when using HM Clips with LoPro vision frames extra caution should be taken to ensure door cut-out is exact. Do not oversize the cut-out!
HM Clip can be used in fire rated and non-fire rated 1 3/4" thick HM doors.
Click here for a cut sheet on the Anemostat HM Cip.
Details and product specs of the Anemostat HM Clip:
| Material: |
20 Ga (1mm) Cold Rolled Steel |
| Door Thickness: |
For 1 3/4 HM doors only. |
| Deadbolt: |
None |
| Latchbolt: |
3/4" throw, stainless steel one-piece anti-friction. |
| Fire Rating: |
UL and WHI (The clip is stamp labeled with both the UL and WHI labels). 20/45/60/90 minutes listing approval from Underwriters Laboratory and Warnock Hersey for use on all Anemostat Vision Frames and the FLDL-UL Louver. |
| Purpose: |
Prevents hollow metal door from collapsing when core burns away during a fire. Replaces the need for reinforcing channel in all Anemostat Vision Frames and the FLDL-UL fusible link louver. |
| Features: |
HM-CLIP adds stregnth and rigidity to a cut-out in a 1 3/4" HM door when properly installed.
For Lites over 100 sq.in. visible lite.
- One HM-Clip required on cutout sides 30" (762mm) to 60" (1524mm) centered in side (minimum U.L. requirements).
- Two HM-Clips required on cutout sides over 60" (1524mm), equally spaced in side (minimum U.L. requirements).
|
| Installation: |
Put long bent side of clip between door skins, then snap into place, fitting flush with the door cutout.
|
| Mfg Model #: |
HM-CLIP |
| MDI Supply Item #: |
ANEMO-HM-CLIP |
| Packaged & Sold: |
10-Each per Bag. Larger orders may be bulk packaged (bag or box). |
| |
|
