HES 9600 Electric Strike, US32D-Satin Stainless Steel

***This product is not returnable ***

HES 9600 Electric Strike
The original completely surface mounted electric strike solution

Click here for installation instructions
Click here for product overview

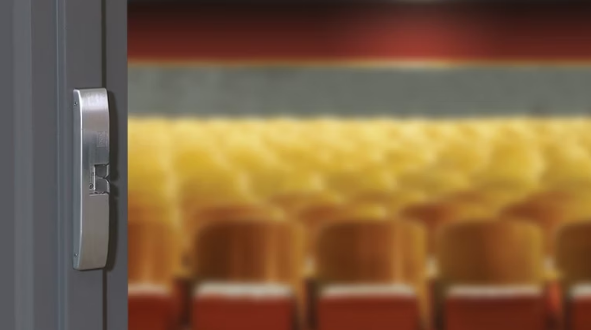

The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC. The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Electric Strike Specifications
» UL1034 burglary-resistant rated
» ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732)
» 12/24 Dual Voltage
» Outdoor Rated
» Fail Secure/Fail Safe
» For use with a Rim Exit Device
» Patented design

Frame application
» Steel
» Aluminum (Will require additional mounting support)
» Wood

Electrical Details of the HES 9600
» .45 Amps @ 12VDC
» .25 Amps @ 24VDC

Standard Features of the HES Electric Strike

• Installs in metal or wood frames (wood screws not included)
• Separate base and decorative cover for easy adjustments
• Stainless steel construction
• Tamper resistant
• Static strength 2,000 lbs
• Dynamic strength 120 ft-lbs
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Horizontal adjustability
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" Pullman latch
• Dual voltage 12 or 24 VDC
