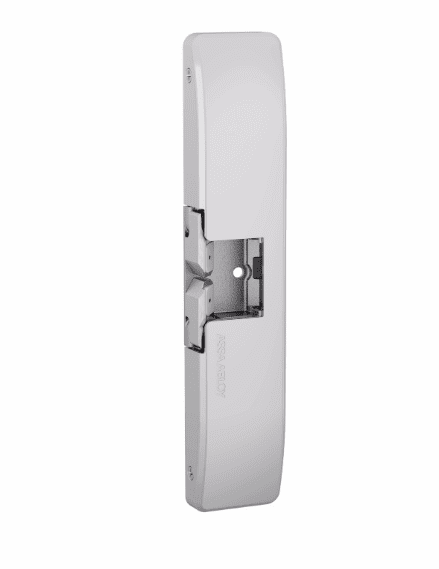

HES 9500 Electric Strike, Fire Rated, US32D-Satin Stainless Steel

***This product is not returnable ***

HES 9500 Electric Strike

The completely surface mounted, fire-rated electric strike solution

Click here for installation instructions

Click here for product overview

The 9500 series is completely surface mounted electric strike, featuring all components completely encased within its ¾" thick stainless steel housing-requiring no cuts to the jamb. This electric strike is designed for use with rim exit devices; the 9500 series electric strike is field selectable to either fail secure or fail safe operation and can be operated with either 12 or 24 Volts DC. The 9500 Genesis strike is the perfect solution for fire-rated, rim exit applications.

HES 9500 Electric Strike Specifications
» UL 10C fire-rated, 1-1/2 hour (fail secure only)
» CAN4-S104 (ULC-S104) fire door conformant
» WHI fire door listed
» UL1034, burglary-resistant listed
» ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372)
» NFPA-252 fire door conformant
» ASTM-E152 fire door conformant
» California Fire Marshall listed
» UBC-7-2-94, Uniform Building Code
» Patented design

Frame application
» Steel
» Wood

Electrical Details for the HES 9500
» .45 Amps @ 12VDC continuous duty
» .25 Amps @ 24VDC continuous duty

Standard Features of the HES 9500 Electric Strike
» Completely surface mounted
» Stainless steel construction
» Tamper resistant
» Static strength 1,500 lbs.
» Dynamic strength 70 ft-lbs.
» Endurance 500,000 cycles
» Field selectable fail safe/fail secure
» Dual voltage 12 or 24 VDC
» Horizontal adjustment
» Non-handed
» Internally mounted solenoid
» Accommodates up to 3/4" Pullman latch
» Five year limited warranty
