Hager Roton 780-210 Continuous Hinge - Full Surface

Hager Roton 780-210 Continuous Hinge - Full Surface

Hager Hardware

SKU: HAG-780-210-83-DB

Availability : Usually ships in 2-3 business days

$250.00
$275.00 $250.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Height: 8inch
View full details

Hager Roton 780-210 Continuous Hinge - Full Surface Information

Hager Roton 780-210 Continuous Hinge x Full Surface

DOWNLOAD PRODUCT TEMPLATE HERE

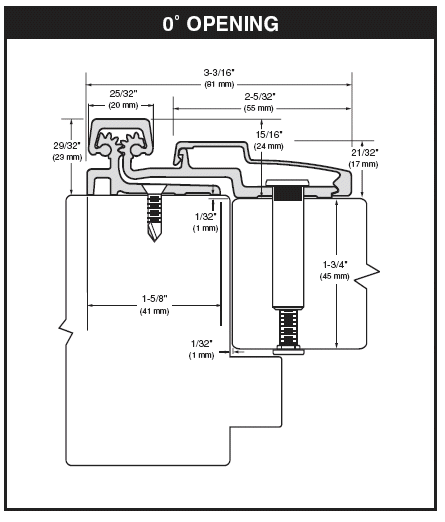

Clearance: - Refer to Door and Frame Dimensioning in the General Information section for further details
- Plus standard lockside clearance
- 1/32" ( 1 mm) minimum recommended for hinge side
- 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance

Fasteners: - Dril-Kwik (R) screws and Sex bolts



Length Options: - Standard and Custom

Door Reinforcement: - None required

Frame Reinforcement: - None required to 200 lbs. Heavier weight use 16-gauge channel.

Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features: - Can be used with any door and frame material
- Security molding
- 1/32" (1 mm) inset



Roton Model Length (inches) Length in (cm) Hole Count (Door) Hole Count (Jamb)
780-210 79 200.7 8 17
780-210 83 210.8 8 19
780-210 85 215.9 8 19
780-210 95 241.3 9 20
780-210 119 302.3 10 22
