Hager EC1105 4.5 inch x 4.5 inch UL Listed Spring Hinges, US4-Satin Brass Finish, 3-Hinges Per Box

Hager EC1105 4.5 inch x 4.5 inch UL Listed Spring Hinges, US4-Satin Brass Finish, 3-Hinges Per Box

SKU: SKU:HAG-EC1105-4545-US4-BX3

Availability : Usually ships the next business day

Regular price $60.00
Regular price $120.00 Sale price $60.00
Sale Sold out
Shipping calculated at checkout.
Size: 4 1/2" x 4 1/2"
Finish: US4-Satin Brass
View full details

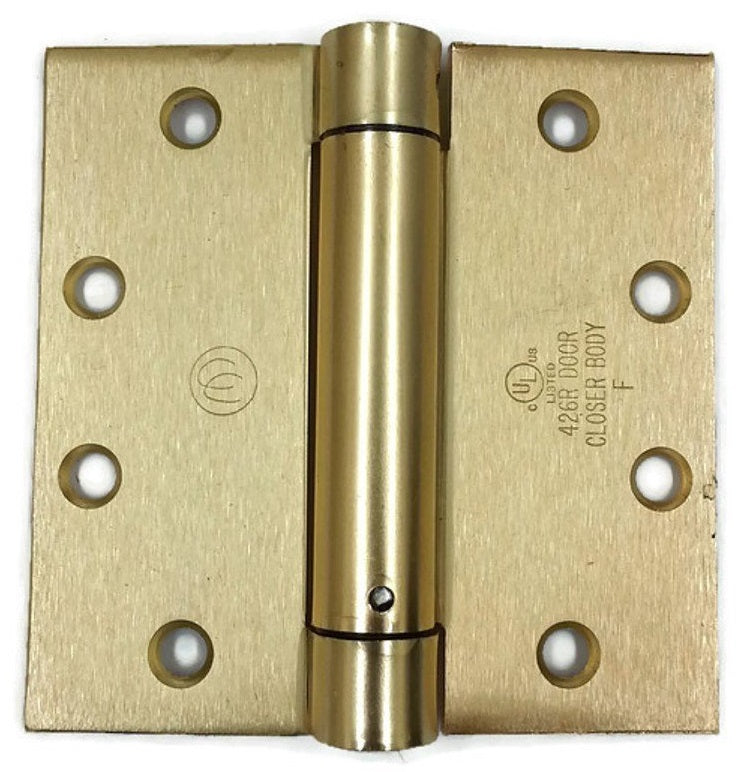

Hager EC1105 UL Listed Spring Hinges
Full Mortise standard weight (.134) UL Listed Spring Hinge - 4.5 inch x 4.5 inch Square Corner



Maximum Door Size:

For labeled doors 4' x 8' the maximum door size is based on the limits set forth by NFPA Standard #80. Labeled Doors require Ball Bearing hinges. For non-labeled doors 4'-0" wide, 4' x 4' Spring hinges are not recommended. For non-labeled doors over 7'-6" in height, use an additional hinge for each additional 30" of height or fraction thereof.


For automatic closing. Meets codes for hotels, motels, institutions, and commercial buildings.

Hager EC1105 commercial UL listed spring hinge details:

Description: » For use on 1 3/4'' doors
  » Recommended maximum door weight 180 lbs.
Material: » Steel ANSI K81071F

Fasteners:

»

All machine and all wood (standard)

Weight: » Standard weight hinge (.134)

Finishes Available:

»

USP, US3, US4, US10B, US15, US26, US26D

Packaged:

»

Three (3) hinges per box. 16-boxes per case.

Priced:

»

Per box.
