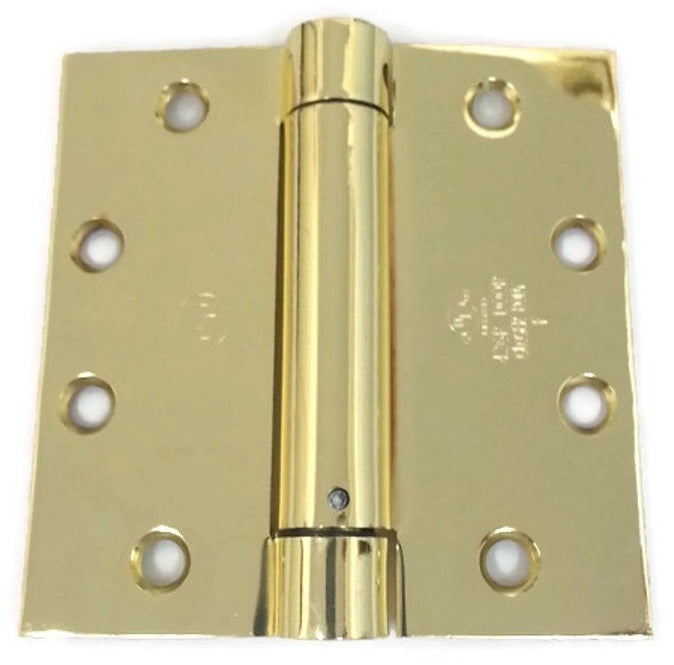

Hager EC1105 4.5 inch x 4.5 inch UL Listed Spring Hinges, US3-Polished Brass Finish, 3-Hinges Per Box
Hager EC1105 4.5 inch x 4.5 inch UL Listed Spring Hinges, US3-Polished Brass Finish, 3-Hinges Per Box
SKU: SKU:HAG-EC1105-4545-US3-BX3
Share
Hager EC1105 4.5 inch x 4.5 inch UL Listed Spring Hinges, US3-Polished Brass Finish, 3-Hinges Per Box Information
Hager EC1105 UL Listed Spring Hinges
Full Mortise standard weight (.134) UL Listed Spring Hinge - 4.5 inch x 4.5 inch Square Corner
Maximum Door Size:
For labeled doors 4' x 8' the maximum door size is based on the limits set forth by NFPA Standard #80. Labeled Doors require Ball Bearing hinges. For non-labeled doors 4'-0" wide, 4' x 4' Spring hinges are not recommended. For non-labeled doors over 7'-6" in height, use an additional hinge for each additional 30" of height or fraction thereof.
For automatic closing. Meets codes for hotels, motels, institutions, and commercial buildings.
Hager EC1105 commercial UL listed spring hinge details: |
||
Description: | » | For use on 1 3/4'' doors |
» | Recommended maximum door weight 180 lbs. | |
Material: | » | Steel ANSI K81071F |
Fasteners: |
» |
All machine and all wood (standard) |
Weight: | » | Standard weight hinge (.134) |
Finishes Available: |
» |
USP, US3, US4, US10B, US15, US26, US26D |
Packaged: |
» |
Three (3) hinges per box. 16-boxes per case. |
Priced: |
» |
Per box. |
UPC Code: | ||
