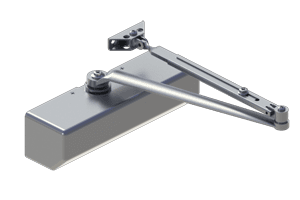

Hager 5300 Door Closer, Surface Mount, 1-6 Adjustable, Sprayed Aluminum Finish
Hager 5300 Door Closer, Surface Mount, 1-6 Adjustable, Sprayed Aluminum Finish
SKU: SKU:HAG-5300-ALM
Availability : Usualy Ships Next Business Day
Regular price
$85.00
Regular price
$260.00
Sale price
$85.00
Unit price
per
Shipping calculated at checkout.
Size: Adjustable Size 1-6
Finish: 689-Aluminum
Couldn't load pickup availability
Hager 5300 Door Closer, Surface Mount, 1-6 Adjustable, Sprayed Aluminum Finish Information
Hager 5300 Series Grade 1 Heavy Duty Surface Door Closer, Multi-Mount, 1-6 Adjustable Spring Size, Sprayed Aluminum Finish
The Hager 5300 door closer is ideal for schools, hospitals, storefronts, and other high-use environments.
| Notes: | - Standard package contains: 5301 closer body, 5302 closer cover, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door - Full rack and pinion operation - Precision machined, heat treated steel piston - Triple heat treated steel spindle |
» Hager 5300 surface door closer specs/details:
| Size: | - Size 1-6 adjustable |
| Certifications: | - BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard - ADA Compliant ANSI A117.1 Accessibility Code - UL/cUL Listed for up to 3 hours - UL10C Positive Pressure Rated - UL10B Neutral Pressure Rated - Lifetime warranty |
| Material: | - Aluminum alloy |
| Cover: | - Full plastic cover and pinion cap |
| Springs: | - Double heat treated steel, tempered springs |
| Valves: | - Adjustable latching and sweep speed valves - Adjustable backcheck valve - Standard - Delayed action valve - Optional - Staked valves - Standard |
| Handing: | - Non-handed |
| Arms & Brackets: | - Tri-Pack - regular, top jamb, and parallel arms - Standard - 15% power adjustment in standard arm for regular and top jamb mount |
| Fasteners: | - Self-reaming, self-tapping wood and machine screws - Sex nuts and bolts |
| Door Thickness | - 1-3/4" (44 mm) |
| Finishes: | - Alum; Other finishes are available by special order. Please contact MDI for a special order price quote. |
Hager 5300 Series Surface Door Closer - ADA Compliant
The Hager 5300 door closer is ideal for schools, hospitals, storefronts, and other high-use environments.
» Hager 5300 Surface Door Closer Downloads:
Click here for Hager 5300 Door Closer template
Click here for Hager 5300 Door Closer Installation Instructions
