Hager 5300 Hold-Open Series Grade 1 Surface Door Closer, Multi-Mount, 1-6 Adjustable Spring Size, Sprayed Aluminum Finish

Hager 5300 Hold-Open Series Grade 1 Surface Door Closer, Multi-Mount, 1-6 Adjustable Spring Size, Sprayed Aluminum Finish

SKU: SKU:HAG-5300-ALM-HO

Availability : Usually Ships in 2-Weeks

Regular price $139.00
Regular price $375.00 Sale price $139.00
Sale Sold out
Shipping calculated at checkout.
Size: Adjustable Size 6
Hold-Open: Yes, Hold Open Arm Included
Finish: 689-Aluminum
View full details

Hager 5300 Hold Open Series Grade 1 Surface Door Closer, Hold-Open Arm Included, Multi-Mount, 1-6 Adjustable Spring Size, Sprayed Aluminum Finish
The Hager 5300 door closer is ideal for schools, hospitals, storefronts, and other high-use environments.

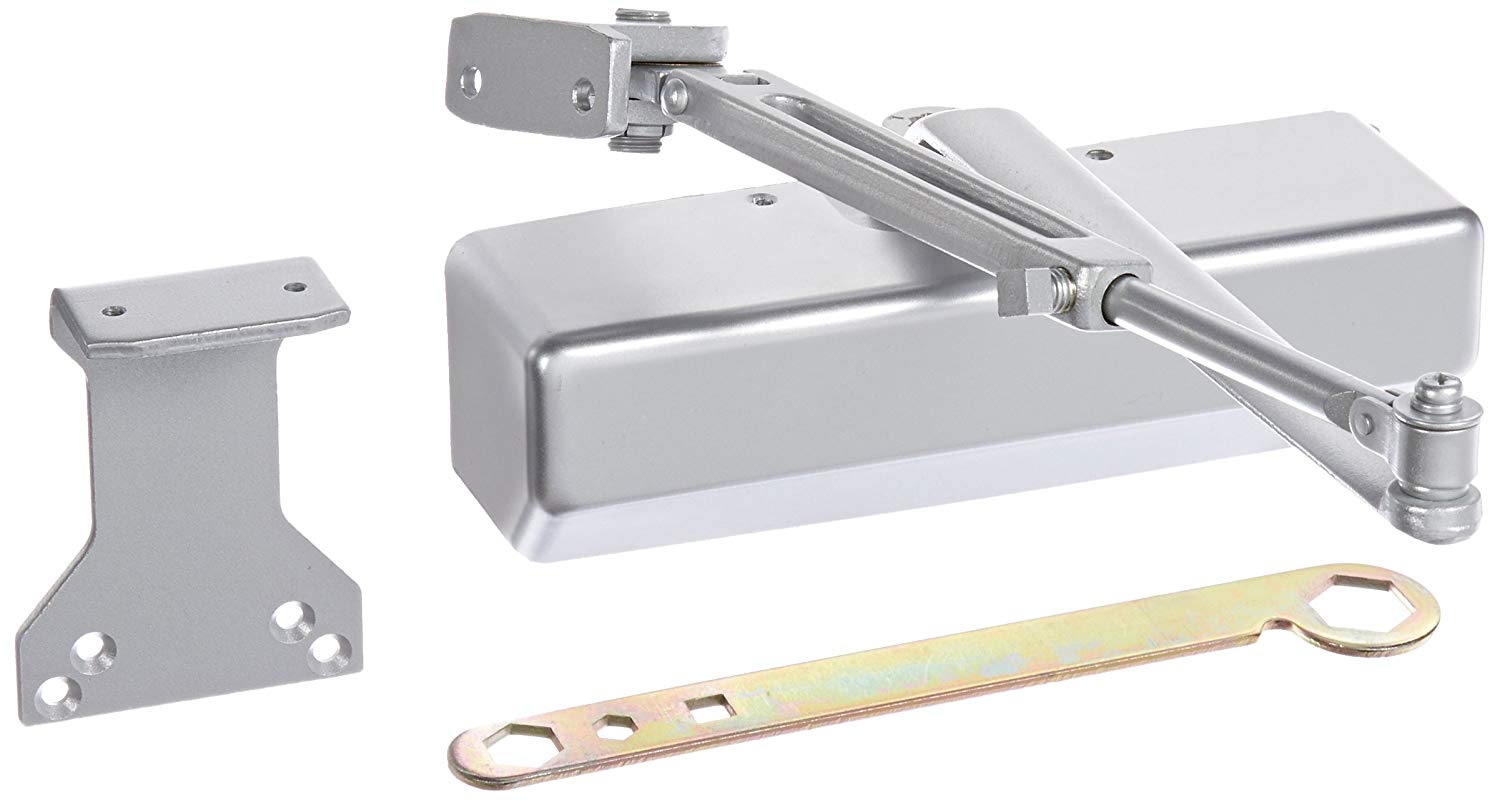

Notes: - Standard package contains: 5301 closer body, 5302 closer cover, 5307 Reg Hold Open arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door
- Full rack and pinion operation
- Precision machined, heat treated steel piston
- Triple heat treated steel spindle


»  A Hold-Open closer cannot be used on fire rated doors.

»  Hager 5300 surface door closer specs/details:

Size:  - Size 1-6 adjustable
Certifications: - BHMA Certified ANSI A156.4, adjustable sizes 1-6 (Standard)
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Factory Lifetime Warranty
Material: - Aluminum alloy
Cover: - Full plastic cover and pinion cap
Springs: - Double heat treated steel, tempered springs
Valves: - Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional
- Staked valves - Standard
Handing: - Non-handed
Arms & Brackets: - Tri-Pack - regular, top jamb, and parallel arms - Standard
- 15% power adjustment in standard arm for regular and top jamb mount
- Hold Open arm included (in lieu of sdtandard arm)
Fasteners: - Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts
Door Thickness - 1-3/4" (44 mm)
Finishes: - Alum; Other finishes are available by special order.  Please contact MDI for a special order price quote.

Hager 5300 Series Surface Door Closer - ADA Compliant

The Hager 5300 door closer is ideal for schools, hospitals, storefronts, and other high-use environments.

» Hager 5300 Surface Door Closer Downloads:
Click here for Hager 5300 Door Closer template
Click here for Hager 5300 Door Closer Installation Instructions
