Drop Plate for Design Hardware 416 Door Closer

Drop Plate for Design Hardware 416 Door Closer

SKU: SKU:DH-DP416

Availability : Usually ships in 2-3 business days

Regular price $45.00
Regular price $100.00 Sale price $45.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

View full details

Drop Plate for the Design Hardware Heavy Duty Door Closer

Regular and Parallel Drop Plates *

* Door closer sold separately.  Click here for link to the 416 door closer.

Click here for spec sheet on the Regular Drop Plate for the 416 closer

Click here for installation instructions on the Drop Plates for the 416 closer

Click here for spec sheet on the Parallel Drop Plate for the 416 closer

* Please note that this product is special order and is not returnable *

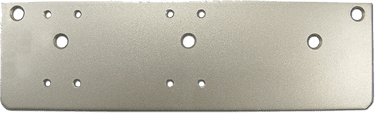

"Regular Type" Drop Plate for the Design Hardware 416 Closer

Base Material:

Steel

Size:

3 9/16" height x 12 3/8" width x 1/4" thickness

Prepared Holes:

Screw holes drilled & tapped for closer mounting & countersunk for installation to frame or door

Application

Used for regular arm mounting when the top rail is too narrow to allow the closer to be mounted directly to the door surface

Minimum Top Rail:

2" minimum top rail required

Handing:

Non-Handed
Finishes Available: Painted Finishes: AL-Aluminum;  BZ-Bronze (dark brown)
Fasteners: Machine, Wood and Self Tapping machine screws
Warranty: Limited Lifetime Warranty

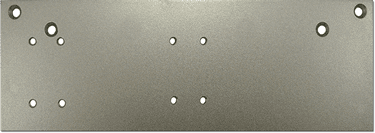

"Parallel Type" Drop Plate for the Design Hardware 416 Closer

Base Material:

Steel

Size:

5" height x 12 3/8" width x 1/4" thickness

Prepared Holes:

Screw holes drilled & tapped for closer mounting & countersunk for installation to frame or door

Application

Used for parallel arm mounting where top rail is less than 5 1/2" measured from the stop

Minimum Top Rail:

2" minimum top rail required

Handing:

Non-Handed
Finishes Available: Painted Finishes: AL-Aluminum;  BZ-Bronze (dark brown)
Fasteners: Machine, Wood and Self Tapping machine screws
Warranty: Limited Lifetime Warranty
