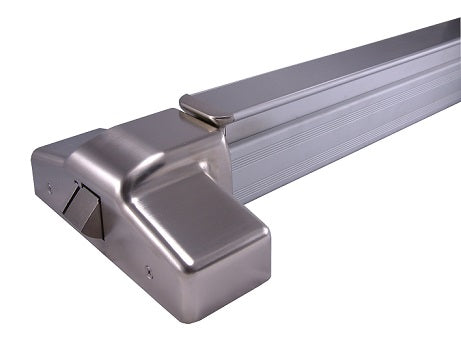

Design Hardware 1000R Rim Panic Exit Device, for up to 48" Doors, for use on NON FIRE RATED Doors, 630-Satin Stainless Steel Finish

Design Hardware 1000R Rim Exit Device - Grade 1 Heavy Duty - US32D-Stain Stainless Steel
Fire use on NON FIRE DOORS up to 48" wide
The Design Hardware 1000R Rim Exit Devices present a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. Used for high impact applications such as schools, universities and other institutional or commercial buildings, the 1000R series exit devices are available with trim options.

Features of the Design Hardware 1000R rim exit device:
- Designed for wide stile doors
- Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
- Non-handed - completely reversible
- Deadlocking latch bolt with 5/8″ projection
- UL Listed for Panic Exit Hardware
- UL Listed for “A” Label 3 Hour Fire Doors
- Meets ADA requirements ANSI A117.1 with Lever Trim
- Meets & Exceeds ANSI A156.3 – Grade 1 Standards

Note:
Dogging function is standard on non-fire rated devices; dogging function not available on fire rated devices.

Please note that keyed exterior trims will be supplied as C-keyway and as keyed random.

Details and product specs of the Design Hardware 1000R rim exit device:

Applications:	Single swing doors; Pairs of doors with removable mullions; Wide stile aluminum, metal, wood or composite door materials
Door Thickness:	1 3/4 standard

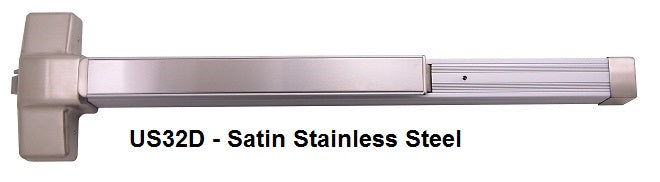

Available Finishes:	US32D - Satin Stainless Steel
Rail Sizes:	42" for 44" - 48" doors
Projection:	Projection: 3 3/8″ Undogged – Pushbar Neutral & 2 13/16″ Dogged – Pushbar Depressed
Fasteners:	Wood, Machine & Self Tapping Machine Screws (F1000R includes thru bolts)
UL Listed:	Non Fire Rated
Sounding Alarm:	Sounding alarm kit is available to prevent unauthjporized exiting
ANSI/BHMA:	Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Latchbolt:	Deadlocking latch bolt with 5/8″ projection
Dogging:	5/32" Hex key dogging standard on panic; Not available on fire rated (FEH)
Handed:	Non-Handed.
Available Trim Options:	EXIT ONLY - No exterior trim.  Nothing outside (no lever, no cylinder). KIL-PASS - Passage lever function (lever always unlocked/always free to get in).  KIL-ENT - Entry lever Function (key locks/unlocks lever).  KIL-ENT-SFIC - Entry lever Function (key locks/unlocks lever) open for SFIC.* KIL-STOR - Storeroom lever function (lever always locked/always need a key to get in).  KIL-STOR-SFIC - Storeroom lever function (lever always locked/always need a key to get in) open for SFIC.* DFP-03NL - Double finger pull handle w/ cylinder included. LE-08-ENT - Entry lever x escutcheon w/ mortise cylinder included. LE-08-PASS - Passage lever x escutcheon (lever always unlocked/always free to get in).  * NOTES:   When SFIC is ordered levers are shipped less IC core.  IC core supplied by others. When stainless steel finish is chosen, KIL-levers are shipped as 626/US26D (satin chrome).  Design Hardware does not make the lever trim in satin stainless steel.
Cylinders & Keyway:	CYLINDERS: All cylinders where applicable will be provided as standard "C-keyway" x keyed random.
Factory Warranty:	Limited Factory Lifetime Warranty (on exit device only);
Mfg Model #:	1000R
MDI Supply Item #:	DH-1000R
Packaged & Sold:	Individually
