Design Hardware Grade 1 Heavy
Duty Z76 Privacy Lever Set
Grade
1 commercial, heavy duty privacy lever set, Z-76
Design
Hardware Z-Series Privacy function lever set is a grade 1 heavy duty lever set.
Privacy
function: Latch bolt operated by lever from either side. Outside
lever is locked by push button inside and unlocked by emergency release outside,
rotating inside lever or closing door.
Click
here for a cut sheet on the Design Hardware Z-Series Grade 1 Leverset.
Details and product specs of
the Design Hardware Z-Series Lever Set:
| Base
Material: |
Steel,
Zinc dichromated chassis for Corrosion Resistance
|
| ANSI |
Meets
& Exceeds ANSI - A156.2, Series 4000, Grade 1 Standards
|
| UL
Listed: |
UL
Listed for "A" Label 3 Hour Fire Doors
|
| ADA: |
Meets
ADA and ANSI A117.1 accessibility codes
|
| Levers: |
5"
Solid zinc die cast levers, 3 1/2" wrought brass roses
|
| Clutch: |
Clutching
levers standard for Vandal resistance on locking functions
|
| Cycle
Testing: |
Tested
to over 2 Million Cycles
|
| Backset: |
2
3/4" backset with 1 1/8" x 2 1/4" latch face
|
| Latch
Face: |
1"
x 2 1/4" latch face both with self adjusting front for square or
beveled edge doors
|
| Lever
Springs: |
Independent
lever return springs to prevent lever sag
|
| Strike
Plate: |
4 7/8" x 1 1/4" ASA standard.
|
| Door
Thickness: |
Factory
Set for 1 3/4" thick doors - can be adjusted to fit 1 3/8" to
2" thick doors
|
| Door
Prep: |
Door
Prep: ANSI A115.2 - 2 1/8" cross bore with (2) 5/16" Thru bolt
holes
|
| Latch
Bolt: |
Stainless
Steel Latch bolt with 1/2" projection, Deadlocking on keyed
functions
|
| Cylinder: |
Not
Applicable. See keyed functions for cylinder specs.
|
| Lever
Styles: |

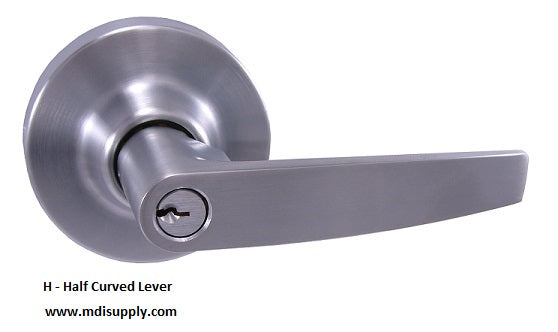

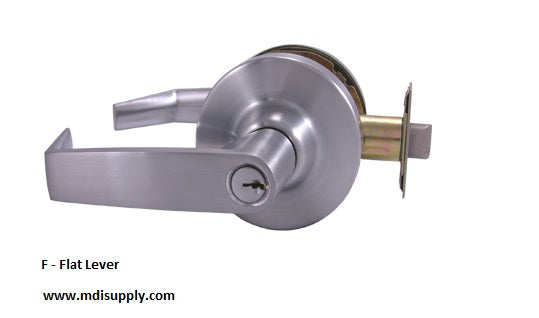

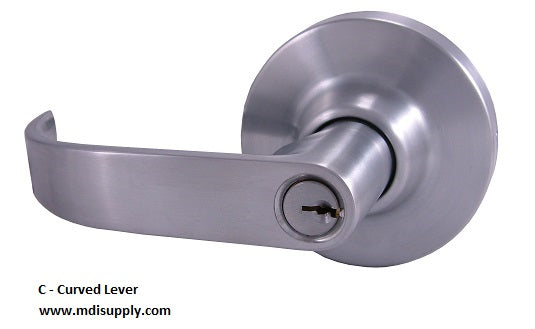

Flat,
Curved & Half Curved
|
| Handing: |
Non-Handed
- Completely reversible
|
| Keys: |
Not
Applicable. See keyed functions for cylinder specs. |
| Finish: |
US26D/626
= Satin/Brushed Chrome |
| Fasteners: |
Combination
screws for wood or metal doors & frames
|
| Warranty: |
Factory
Limited Lifetime Warranty
|
| Mfg
Model #: |
Z-76 |
| MDI
Supply Item #: |
DH-Z-76-PRIV |
|
|
