Design Hardware Grade 1 Heavy
Duty Z75 Passage Lever Set
Grade
1 commercial, heavy duty passage lever set, Z-75
Design
Hardware Z-Series Passage function lever set is a grade 1 heavy duty lever set.
Passage
function: Latchbolt is operated by lever from either side and all
times. Both levers are always unlocked at all times. For
buildings or openings with high traffic use.
Click
here for a cut sheet on the Design Hardware Z-Series Grade 1 Leverset.
Details and product specs of
the Design Hardware Z-Series Lever Set:
| Base
Material: |
Steel,
Zinc dichromated chassis for Corrosion Resistance
|
| ANSI |
Meets
& Exceeds ANSI - A156.2, Series 4000, Grade 1 Standards
|
| UL
Listed: |
UL
Listed for "A" Label 3 Hour Fire Doors
|
| ADA: |
Meets
ADA and ANSI A117.1 accessibility codes
|
| Levers: |
5"
Solid zinc die cast levers, 3 1/2" wrought brass roses
|
| Clutch: |
Clutching
levers standard for Vandal resistance on locking functions
|
| Cycle
Testing: |
Tested
to over 2 Million Cycles
|
| Backset: |
2
3/4" backset with 1 1/8" x 2 1/4" latch face
|
| Latch
Face: |
1"
x 2 1/4" latch face both with self adjusting front for square or
beveled edge doors
|
| Lever
Springs: |
Independent
lever return springs to prevent lever sag
|
| Strike
Plate: |
4 7/8" x 1 1/4" ASA standard.
|
| Door
Thickness: |
Factory
Set for 1 3/4" thick doors - can be adjusted to fit 1 3/8" to
2" thick doors
|
| Door
Prep: |
Door
Prep: ANSI A115.2 - 2 1/8" cross bore with (2) 5/16" Thru bolt
holes
|
| Latch
Bolt: |
Stainless
Steel Latch bolt with 1/2" projection, Deadlocking on keyed
functions
|
| Cylinder: |
Not
Applicable. See keyed functions for cylinder specs.
|
| Lever
Styles: |

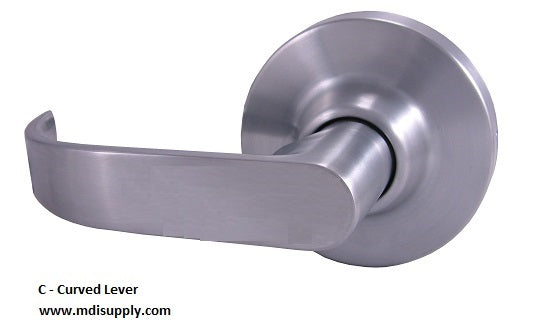

Flat,
Curved & Half Curved
|
| Handing: |
Non-Handed
- Completely reversible
|
| Keys: |
Not
Applicable. See keyed functions for cylinder specs. |
| Finish: |
US26D/626
= Satin/Brushed Chrome |
| Fasteners: |
Combination
screws for wood or metal doors & frames
|
| Warranty: |
Factory
Limited Lifetime Warranty
|
| Mfg
Model #: |
Z-75 |
| MDI
Supply Item #: |
DH-Z-75-PASS |
|
|
