Design Hardware Z-82 Entry Function Grade 1 Lock
Design Hardware Z-82 Entry Function Grade 1 Lock
SKU: SKU:DH-Z-82-ENT
Product Options:
Share
Design Hardware Z-82 Entry Function Grade 1 Lock Information
Design Hardware Grade 1 Heavy Duty Z82 Entrance Lever Lock
Grade 1 commercial, heavy duty entry lever lock, Z-82
Design Hardware Z-Series Entry function lockset is a grade 1 heavy duty lever lock.
Entry function: Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latch bolt operated by inside lever at all times. For buildings or openings with high traffic use.
Click here for a cut sheet on the Design Hardware Z-Series Grade 1 Lockset.
Details and product specs of the Design Hardware Z-Series Lever Lock:
Base Material: | Steel, Zinc dichromated chassis for Corrosion Resistance |
ANSI | Meets & Exceeds ANSI - A156.2, Series 4000, Grade 1 Standards |
UL Listed: | UL Listed for "A" Label 3 Hour Fire Doors |
ADA: | Meets ADA and ANSI A117.1 accessibility codes |
Levers: | 5" Solid zinc die cast levers, 3 1/2" wrought brass roses |
Clutch: | Clutching levers standard for Vandal resistance on locking functions |
Cycle Testing: | Tested to over 2 Million Cycles |
Backset: | 2 3/4" backset with 1 1/8" x 2 1/4" latch face |
Latch Face: | 1" x 2 1/4" latch face both with self adjusting front for square or beveled edge doors |
Lever Springs: | Independent lever return springs to prevent lever sag |
Strike Plate: | 4 7/8" x 1 1/4" ASA standard. |
Door Thickness: | Factory Set for 1 3/4" thick doors - can be adjusted to fit 1 3/8" to 2" thick doors |
Door Prep: | Door Prep: ANSI A115.2 - 2 1/8" cross bore with (2) 5/16" Thru bolt holes |
Latch Bolt: | Stainless Steel Latch bolt with 1/2" projection, Deadlocking on keyed functions |
Cylinder: |
6 Pin Brass, C Keyway, with 2 Keys per lock (standard);
Prepared for SFIC (Small format IC core) less core. Permanent core by others. |

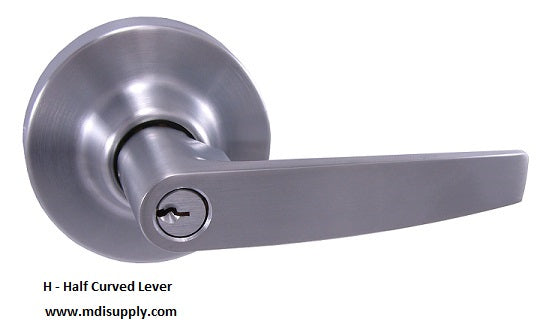

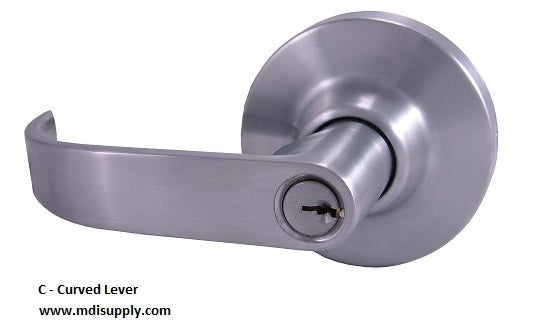

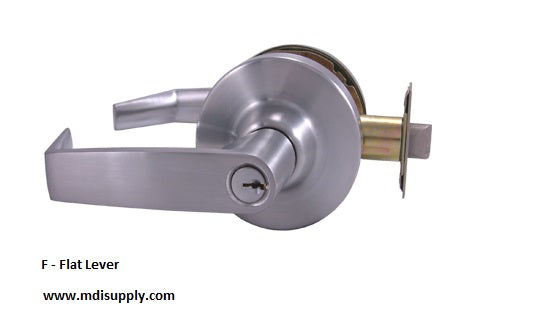

Lever Styles: | Flat, Curved & Half Curved |
Handing: | Non-Handed - Completely reversible |
Keys: | Two keys included per lock. |
Finish: | US26D/626 = Satin/Brushed Chrome |
Fasteners: | Combination screws for wood or metal doors & frames |
Warranty: | Factory Limited Lifetime Warranty |
Mfg Model #: | Z-82 |
MDI Supply Item #: | DH-Z-82-ENT |
