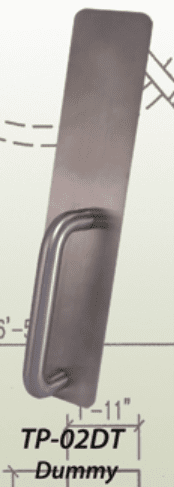

Design Hardware TP-02DT Dummy Pull Plate Exit Device Trim, No Cylinder, US32D-Satin Stainless Steel

Design Hardware TP-02DT Dummy Pull Plate Trim Only
For use on Design Hardware 1000R & 2000R Exit Devices Only

This item is special order.  Once ordered it cannot be canceled, returned or exchanged

Construction:  Stainless Steel Construction Steel, Zinc Dichromated chassis
Pull Plate: 3″ Wide x 13 3/4″ Height x 1/16″ thick
Pull: 3/4″ diameter hollow x 6″ ctc x 2 7/16″ projection
Application: Pull trim with thumbpiece control option for 1000R & 2000R
Mounting:  Thru bolted design thru bolts to head of exit device and to door with finish washer. Will cover 161 door prep
Handing:  Non-Handed
Door thickness: 1 3/4″ standard
Functions: 02DT Dummy
Finishes: US32D Limited Lifetime Warranty

* Note:  Exit devices sold separately
