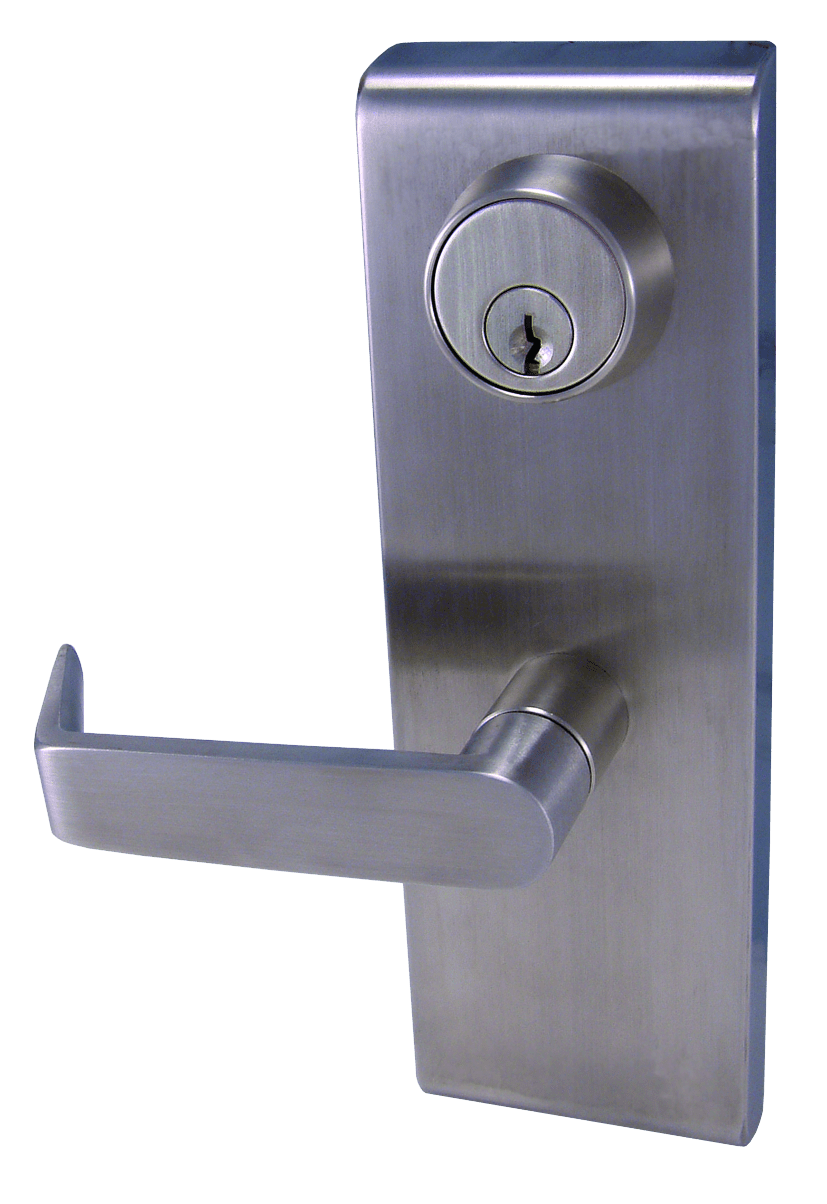

Design Hardware LE-8 Exit Device Escutcheon Lever Trim, Entry Function, US32D-Satin Stainless Steel.
For use with Design Hardware 1000R & 2000R Exit Devices Only
Cylinder Types:
- LE-08: With Mortise Cylinder includes a mortise cylinder, keyted random.
- LE-08-SFIC: With SFIC Mortise Cylinder Housing includes a mortise cylinder provisioned to receive a permanent SFIC core. SFIC core to be supplied and installed by others.
Design Hardware LE-08 Trim Specs:
ANSI: ANSI A156.3, Grade 1
ADA: Meets ADA requirements ANSI A117.1
Construction: Steel, Zinc Dichromated Chassis - Stainless Steel Exterior Housing
Application: Heavy Duty trim option for use with all 1000 & 2000 series exit devices
Mounting: Thru bolted design thru bolts to head of exit device
Spindle: 5/16” Square, Steel - Machined & Heat Treated
Lever: 5” Solid Stainless Steel lever - 2 7/8” total projection
Lever Designs: Flat (standard, shown above) & Curved Lever is Optional. Contact MDI.
Escutcheon: 3” Wide x 9” Height x 3/4” Projection - Will cover 161 door prep
Handing: Non-Handed, Field selected at the time of installation
Door Thickness: 1 3/4” standard-Thick door kits available for 2” thick doors. Contact MDI.
Available Functions: 02DT Dummy, 08 Entry (convertible to 03NL - Night latch), 08A Passage *
Fasteners: Includes thru bolt posts and 1/4”-20 machine screws for installation
Standard Cylinder: 1 1/8” Mortise cylinder with std. cam (included) - 6 Pin Brass, C Kwy, with 2 Keys
Optional Cylinders: 1 3/8” Mortise cylinder housing for 6 or 7 pin Small format IC core (less core)...Contact MDI.
Finishes: US3, US4 , US10B, US26, US32D (Type 304SS standard), (Marine Grade 316SS option)
Accessories: 1/8” Cylinder collar spacer rings - (2 are supplied with IC housings)
Electrified Options: 12/24 Volt AC/DC – Fail Safe/Fail Secure Field selectable
Warranty: Limited lifetime warranty
Note: Exit devices sold separately
* The LE08 (Entry function) trim comes with instructions in the box for converting the trim to the NL (Nigh Latch) function (same as storeroom function).
