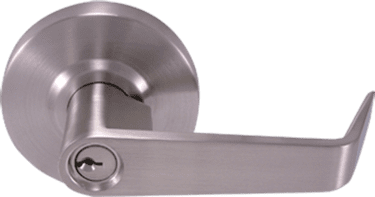

Design Hardware KIL-Exit Device Lever Trim, ENTRY FUNCTION, US26D-Satin Chrome

Design Hardware KIL-ENT Key in Lever Entry Function Exit Device Trim Only
For use on Design Hardware 1000R & 2000R Exit Devices Only

Construction:  Steel, Zinc Dichromated chassis with Secure Thru Bolted Design
Application: Standard duty lever trim option for 1000R & 2000R (not recommended for use with SVR devices)
Door Prep: Installs into a standard 2 1/8" hole (161) door lock prep.
Actuator: Cross shaped stainless steel
Lever: 5" Solid Zinc Diecast Lever - 2 7/8" Total Projection
Lever Design: Flat (standard shown).
Rose: 3 3/8" wrought brass roses
Handing:  Non-Handed...completely reversible
Door thickness: 1 3/4″ standard
Functions: KIL-ENT: Entry Function
Cylinder: 6-Pin brass, C-keyway, keyed random
Optional Keyways: Are available.  Please contact MDI for more information.
Finishes: US26D-Satin Chrome.  Other finishes are available.  Please contact MDI for more information.
Warranty: Limited Lifetime Warranty

* Note:  Exit devices sold separately

Design Hardware KIL-ENT Entry Lever Trim Only
For use on Design Hardware 1000R & 2000R Exit Devices Only

Click here to download the item cut sheet.
