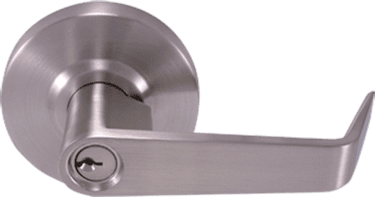

Design Hardware KIL-Exit Device Lever Trim, STOREROOM FUNCTION, US26D-Satin Chrome

Design Hardware KIL-Exit Device Lever Trim, STOREROOM FUNCTION, US26D-Satin Chrome

SKU: SKU:DH-KIL-STOR-626

Regular price $85.00
Regular price $265.00 Sale price $85.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

View full details

Design Hardware KIL-STOR Key in Lever Storeroom Function Exit Device Trim Only
For use on Design Hardware 1000R & 2000R Exit Devices Only
Lever is always locked from outside.  You need the key to enter from the outside, otherwise you cannot enter.


Construction:
 Steel, Zinc Dichromated chassis with Secure Thru Bolted Design
Application: Standard duty lever trim option for 1000R & 2000R (not recommended for use with SVR devices)
Door Prep: Installs into a standard 2 1/8" hole (161) door lock prep.
Actuator: Cross shaped stainless steel
Lever:
5" Solid Zinc Diecast Lever - 2 7/8" Total Projection
Lever Design:
Flat (standard shown).
Rose:
3 3/8" wrought brass roses
Handing:
Non-Handed...completely reversible
Door thickness: 1 3/4″ standard
Functions: KIL-STOR: Storeroom Function
Cylinder: 6-Pin brass, C-keyway, keyed random
Optional Keyways: Are available.  Please contact MDI for more information.
Finishes: US26D-Satin Chrome.  Other finishes are available.  Please contact MDI for more information.
Warranty: Limited Lifetime Warranty



* Note:  Exit devices sold separately

Design Hardware KIL-STOR Storeroom Lever Trim Only
For use on Design Hardware 1000R & 2000R Exit Devices Only
Lever is always locked from outside. You need the key to enter from the outside, otherwise you cannot enter.


Click here to download the item cut sheet.
