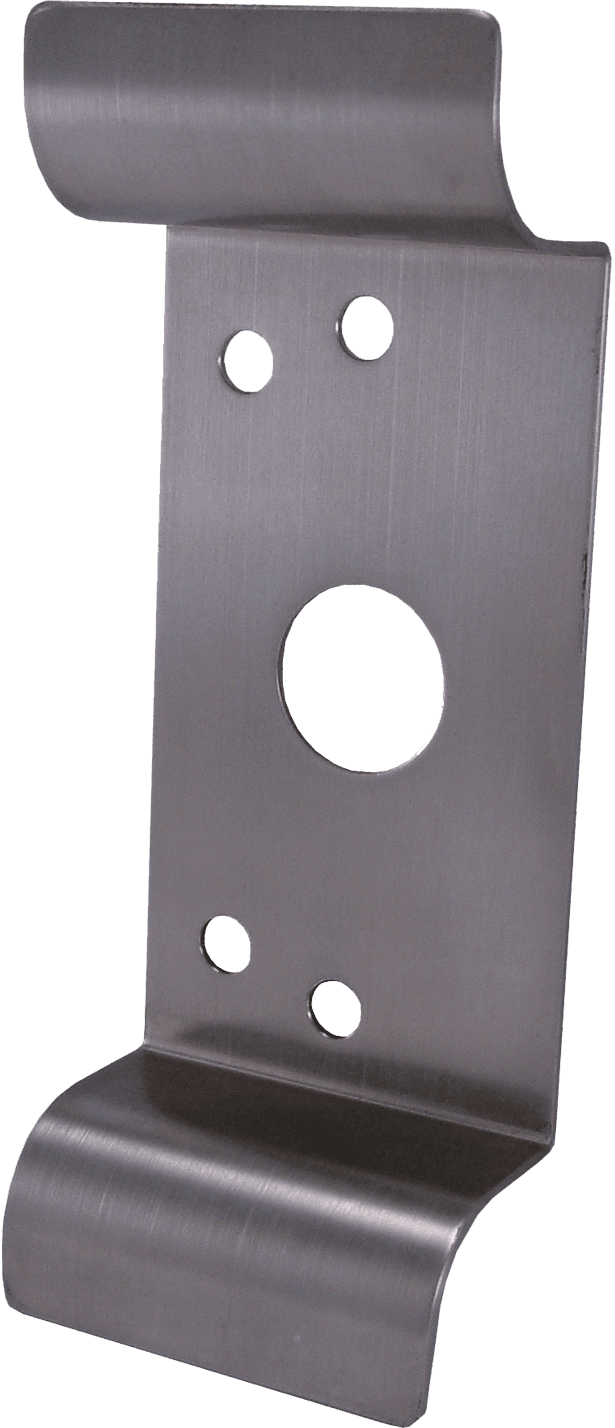

Design Hardware DFP-03NL Exit Device Pull Trim, NIGHT LATCH FUNCTION, US32D-Satin Stainless Steel

Design Hardware DFP-03NL Exit Device Pull Trim, Trim Only, Satin Stainless Steel (US32D)
For use on Design Hardware 1000R & 2000R Exit Devices Only

Construction:  Stainless Steel Construction
Pull Plate: 3″ Wide x 8″ Height x 1/16″ thick x 1 11/16″ projection
Application: Economical pull trim option for 1000R & 2000R. Will cover 161 door prep (Not recommended for SVR devices as rods can be hard to lift with rim cylinder tailpiece)
Design: Thru bolted design thru bolts to head of exit device.
Handing:  Non-Handed
Door Thickness: 1 3/4″
Functions: 03-NL Night latch (key retracts latch)
Accessories: 03-NL includes cylinder sleeve for installation into 161 door prep
Fasteners: Includes (4) thru bolts and 1/4″-20 machine screws for installation
Cylinder:  Rim Cylinder required for 03NL (not automatically included)
Finishes: US32D.  Other finishes available by special order.  Contact MDI.
Warranty: Factory Limited Lifetime Warranty

* Note:  Exit devices sold separately
