Design Hardware 416-BZ Heavy Duty Door Closer, Cast Iron, ADA Compliant, Bronze Finish
Design Hardware 416-BZ Heavy Duty Door Closer, Cast Iron, ADA Compliant, Bronze Finish
SKU: SKU:DH-416-BZ-RPA
Product Options:
Couldn't load pickup availability
Design Hardware 416-BZ Heavy Duty Door Closer, Cast Iron, ADA Compliant, Bronze Finish Information

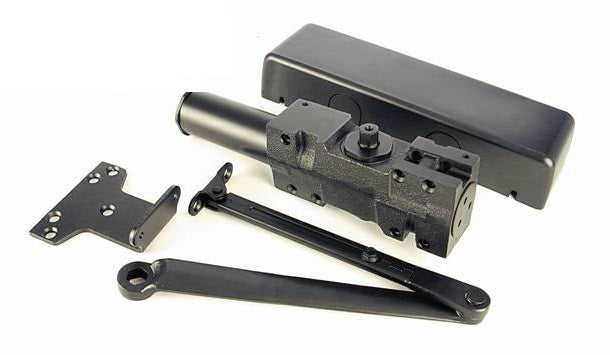

Design Hardware 416 Heavy Duty Door Closer
Surface applied application with a cast iron body and full size cover as standard
The Design Hardware 416 heavy duty surface door closer is ideal for institutions or other high traffic applications and is adjustable for sizes 1-6. Factory set at size 3. This closer come standard with regular arm (for in-swing) and a parallel arm bracket (for out-swing doors) as standard.
Specs/Details of the Design Hardware 416 Surface Door Closer:
|
» |
Meets ANSI A156.4 - Grade 1 Standards |
|
» |
For "A" Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
|
» |
Meets ADA requirements ANSI A117.1 |
|
» |
Heavy Duty Door Closer with a Cast Iron Closer Body with Precision Rack & Pinion Construction |
|
» |
Heat Treated Steel Piston & Spindle with Needle Bearings for Smooth Operation |
|
» |
Heat Treated Heavy Duty Tempered Spring for up to 250lb door |
|
» |
Adjustable Size 1 to 6 - Factory set at size 3 |
|
» |
Independent Latch & Sweep Speed Controls |
|
» |
Adjustable Back Check Intensity Control Valve |
|
» |
Staked Valves to prevent backing valves out too far |
|
» |
Molded Plastic Cover included for finished look |
|
» |
2 holes 1" CTC, 3" CTC horizontal x 2 1/4" CTC vertical |
|
» |
2 1/4" projection with cover installed |
|
» |
Regular Arm: 3 3/4" - Top Jamb: 1 1/4" - Parallel Arm: 5 3/8" |
|
» |
Thru bolts with machine screws, Wood screws & Self tapping machine screws included |
|
» |
The 416 standard door closer package includes the following: Includes all screws and brackets for Regular Arm, Top Jamb and Parallel Arm Installations |
|
» |
The 416 door closer is a surface-mounted type door closer. |
|
» |
Optional Accessories: Hold Open Arms, Heavy Duty Arms, Drop Plates, Extended Arms & more...Please contact MDI Supply at 888.634.3667 for more details. |
|
» |
Factory Limited Lifetime Warranty |
|
» |
Retrofits LCN 4040 closers |
|
» |

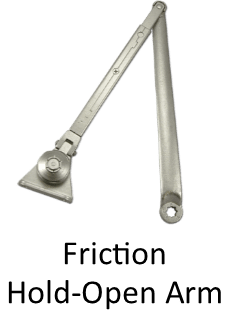

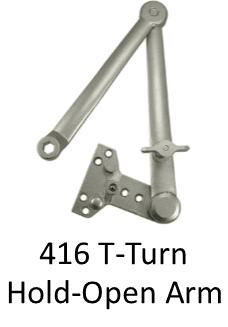

Optional Accessories: * Please note that Hold Open Arms CANNOT be used on fire rated openings. And when a Hold-Open Arm is ordered with a closer, the Hold Open Arm will be packaged with the door closer instead of the standard arm. Arm finish will match closer finish ordered. |
| DOOR CLOSER COMPARISON CHART | ||||
|
Design Hardware |
LCN |
NORTON |
ARROW |
Stanley |
|
416 |
4040 |
7500 (cast alum) 9500 (cast iron) |
DC516 (1-6) DC514 (1-4) |
QDC100 |
