Design Hardware 316 Heavy Duty Door Closer, Metal Cover, Plated Finish, ADA Compliant

Design Hardware 316 Heavy Duty Door Closer, Metal Cover, Plated Finish, ADA Compliant

SKU: SKU:DH-316MC

Availability : Usually ships in 3-4 business days

Regular price $275.00
Regular price $795.00 Sale price $275.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Arm: Regular & Parallel Arms-Standard
View full details

Design Hardware 316MC Door Closer
The Design Hardware 316 series cast aluminum door closers are ideal for commercial applications. The 316 series door closer features adjustable spring power (size 1-6), independant latch & weep speed, heat treated heavy duty steel piston, spndle & spring and a variety of arm options.  This closer, the 316MC comes standard as a plated finish and is supplied with a metal cover.

This item is special order and once ordered it cannot be canceled, returned or exchnaged.

Details and product specs of the Design Hardware 316 Series Grade 1 heavy duty door closer:

Warranty: Factory Limited Lifetime Warranty.
Features: Adjustable spring sizes 1-6 (standard) - factory set to 3
Non-handed (standard)
Cast aluminum heavy duty body (standard)
Rack & Pinion Construction
Tri-packed: regular, parallel or top jamb mounting (standard)
Full metal cover - plated finishes
Spring power adjustment (standard)
Thru bolts with machine screws, wood screws & self-tapping machine screws included with each closer (standard)

Standard Functions: Backcheck Intensity Control
Independant Latch & Sweep Speed Controls
Slim 2 1/8" Projection with Cover Installed
Available Finishes:

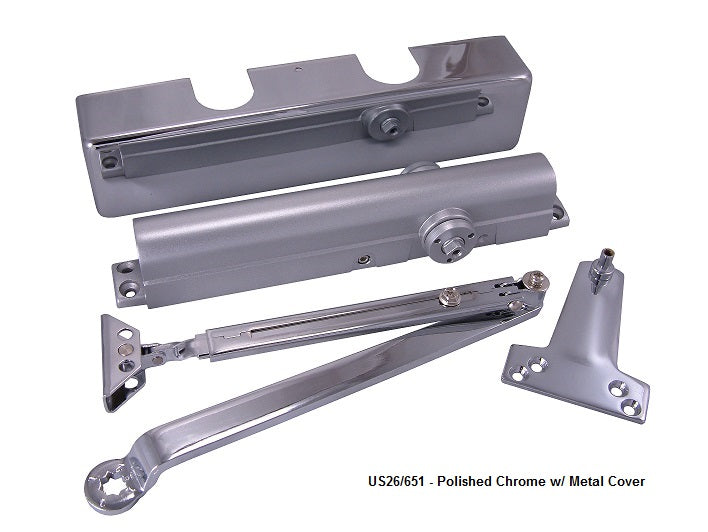

US26/651 - Polished Chrome

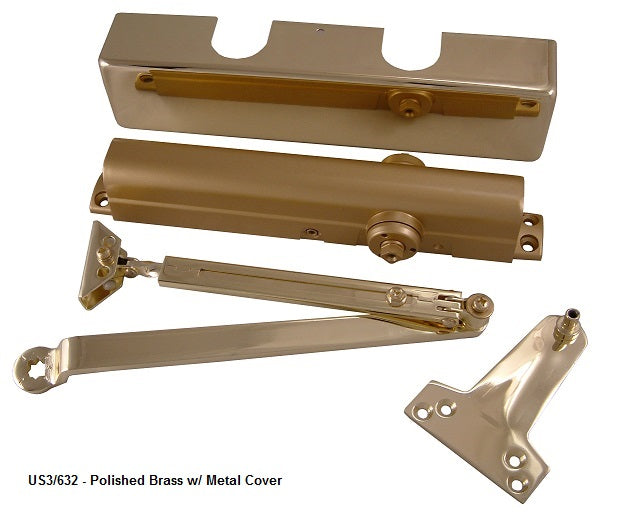

US3/632 - Polished Brass

Certifications: Certified for ANSI A156.4 Grade 1.
"A" Label 3 Hour Fire Doors, ULC Positive Pressure Rated
Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1.
CTC Hole Pattern: 12" CTC Horizontally x 3/4" CTC Vertically
Mfg Model #: 316MC
MDI Supply Item #: DH-316MC
Packaged & Sold: Individually
