Design Hardware 316 Heavy Duty Door Closer, Standard Cover, Painted Finish, ADA Compliant

Design Hardware 316 Door Closer
The Design Hardware 316 series cast aluminum door closers are ideal for commercial applications. The 316 series door closer features adjustable spring power (size 1-6), independant latch & weep speed, heat treated heavy duty steel piston, spndle & spring and a variety of arm options.

This item is special order and once ordered it cannot be canceled, returned or exchnaged.

Details and product specs of the Design Hardware 316 Series Grade 1 heavy duty door closer:

Warranty:	Factory Limited Lifetime Warranty.
Features:	Adjustable spring sizes 1-6 (standard) - factory set to 3 Non-handed (standard) Cast aluminum heavy duty body (standard) Rack & Pinion Construction Tri-packed: regular, parallel or top jamb mounting (standard) Full plastic cover (standard) - painted finishes Spring power adjustment (standard) Thru bolts with machine screws, wood screws & self-tapping machine screws included with each closer (standard) Optional Friction Hold-Open Arm Available * * Hold-Open Arm closers cannot be used on fire rated doors.
Standard Functions:	Backcheck Intensity Control Independant Latch & Sweep Speed Controls Slim 2 1/8" Projection with Cover Installed

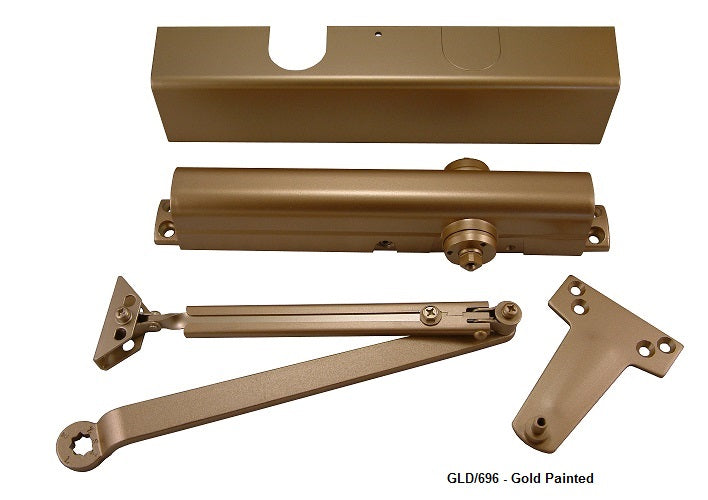

Available Finishes:	AL/689 - Aluminum Painted BZ/690 - Dark Bronze Painted GLD/696 - Gold Painted
Certifications:	Certified for ANSI A156.4 Grade 1. "A" Label 3 Hour Fire Doors, ULC Positive Pressure Rated Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1.
CTC Hole Pattern:	12" CTC Horizontally x 3/4" CTC Vertically
Mfg Model #:	316
MDI Supply Item #:	DH-316
Packaged & Sold:	Individually
