Detex V40-EB Alarmed Panic Exit Device

Detex V40-EB Alarmed Panic Exit Device

SKU: SKU:Detex-V40-EB

Availability : Usually ships in 5-7 business days

Regular price $495.00
Regular price $1,400.00 Sale price $495.00
Sale Sold out
Shipping calculated at checkout.
View full details

Detex V40-EB Alarmed Panic Exit Device
The V40 Series rim exit device is secure and durable, Grade 1 panic and fire exit hardware (fire rated) at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Product details of the Detext V40-EB Panic Exit Device

Application:

Designed for primary and secondary exits that require an (audible) alarmed panic exit device. Alarm will sound when someone attempts to exit, alerting management to the unauthorized exit.

Size

For use on 36" and 48" doors that are 1 3/4" - 2 1/4" thick.

Field Sizeable:

Yes, you can field-size the device to fit most door sizes.

Material & Finish: Clear anodized aluminum (628) & Painted black (two-tone appearance).  See image shown above.

Alarm:

Powered by a standard 9-volt battery (EB) - battery included.

Dogging:

Hex dogging on non-fire rated devices only.

Options:

3-Hour fire rated (F) - no dogging allowed.

  Rim cylinder (no pull trim) - required for exterior access.

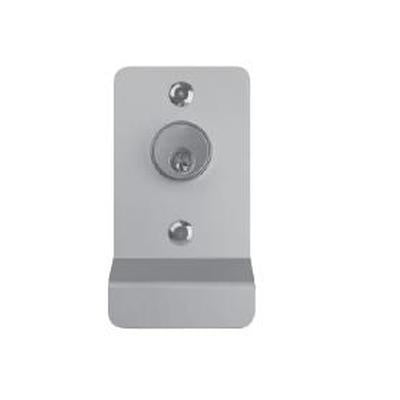

# 03P-628 pull trim with rim cylinder (image shown above) - required for exterior access.



Mortise cylinder - required to arm/disarm the alarm.



Sold As:

Sold individually.

MDI Supply #

Detex-V40-EB



 Detex Logo



Detex V40-EB Technical Data:
»  Stainless-steel, 3/4" dead-locking Pullman-type latch bolt.

»  Accommodates 5, 6 and 7 pin standard and IC core mortise cylinders with a standard Yale Cam.
»  Covers a 161 door prep
»  Non-handed
»  Machine and self-drilling screws (standard).
»  Heavy duty angled end cap to help protect against damage
»  Heavy Duty ribbed aluminum rail extrusion
»  High impact ABS and anodized surfaces.|
»  Withstands over 1400 pounds of static pull force for greater security.
»  Patented mounting plate and strike locator.
