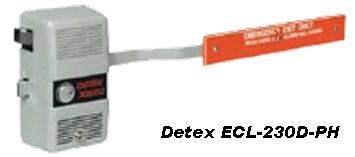

Detex ECL-230D Alarmed Panic Exit Device

Detex Exit Control Lock

The Detex ECL-230 exit device is a code compliant, battery alarmed, rugged dead bolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.

Click here for Installation Instructions for the Detex ECL-230 Series

Click here for Detex ECL-230D Tech Data Sheet

Detex ECL-230D Benefits

�  Proven durability and reliability at a reasonable price

�  Reduces employee and customer theft

�  Easy to install

�  Time tested construction resists attack from the inside

�  Easy to see if the lights go out

�  Straightforward operation that everyone understands

Product Overview of the Detex ECL-230D Alarmed Panic Exit Device

�  Single point, 1" throw saw-resistant deadbolt

�  Door Types - Wood, Hollow Metal or Aluminum

�  100 decibel alarm, powered by 9-volt battery (included)

�  Accepts 5-pin through 7-pin standard and interchangeable core rim cylinder. (Cylinder not included)

�  Locking and unlocking the dead bolt always arms and disarms the alarm

�  Resetting the alarm can only be accomplished with a control key (Requires optional cylinder)

�  Requires at least one (keyed) rim cylinder (optional) to turn-off alarm when sounding

�  For operation from both sides of the door, two rim cylinders are required.

�  Standard arm/bar orders typically ship-out on the 2-3 business days.

�  * Optional long bar/arm orders typically ship-out in two (2) weeks.

Technical Specifications of the Detex 230D exit device:

�  Non-handed

�  Gray finish (painted)

�  Meets ADA requirements

�  Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)

�  Door Stile - Fits maximum 1-7/8" with ECL-475 Kit (Decorative Back Plate Kit)

�  Machine and Sheet Metal Screws (Std.)

�  Corrosion resistant allow lock body
