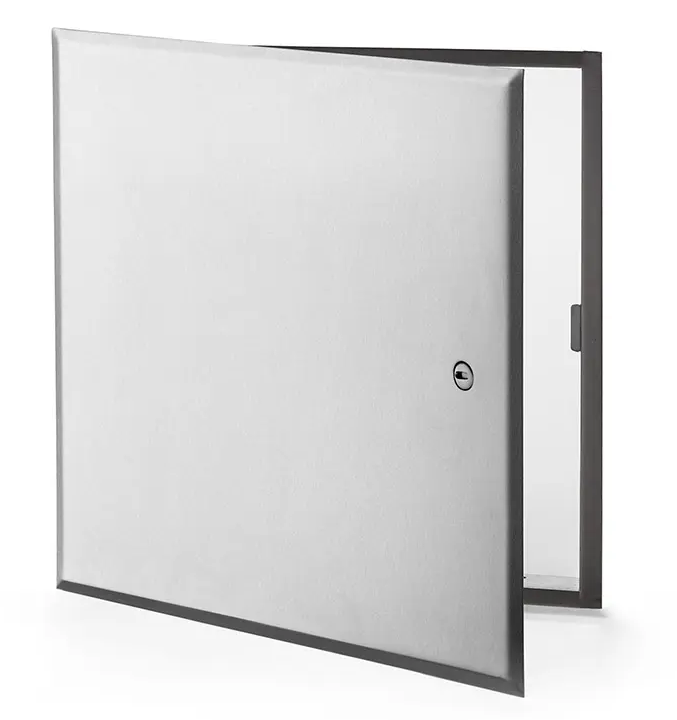

CTR-SS Stainless Steel Hidden Frame Access Door
Designed for a more aesthetically pleasing finish, the stainless steel panel, with its beveled edges, closes over the flange. The optional gasket is used to reduce airflow between the panel and the frame.
Stainless Steel non-rated access panel aesthetically designed to meet the needs and requirements of the most discriminating customers. This access door is designed with patent pending hinge design which hides the frame behind the door which also cuts installation time approximately 50% of a standard flush drywall beaded door or a flush plaster door, and much less cost.
This door also offers a more pleasing finished look than the standard flush mounted (AHD Series) door with a 1" flange. No more unsightly outlines with the CTR. For installation in any wall or ceiling material.
A labor saving alternative to doors with drywall flanges. "No need to mud or plaster."
Features & Benefits of the CTR-SS Access Door:
Technical Specs of the CTR-SS Hidden Frame Access Door:
| Material: |
Stainless Steel: Type 304, # 4 Satin Finish |
| Gauge: |
16 |
| Flange/Frame: |

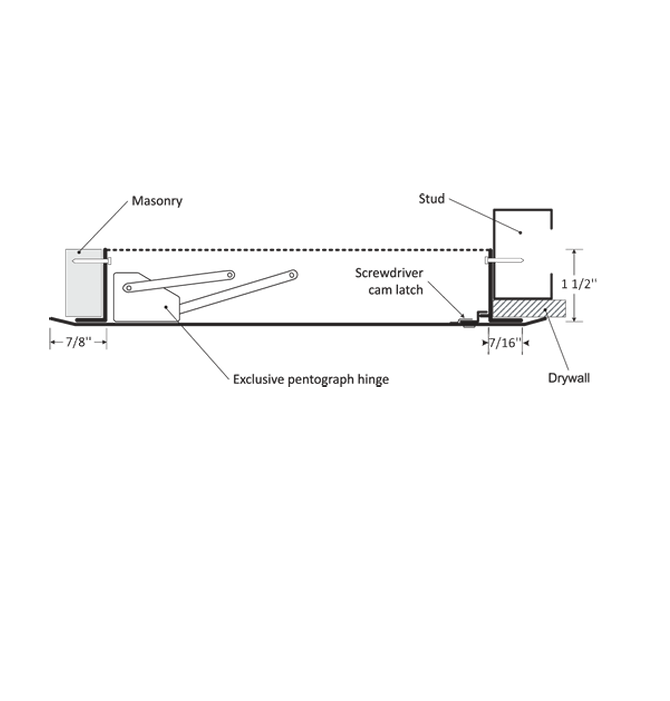

Flange: 7/8" concealed flange, made of stainless steel
Frame: Concealed: 1½" in depth, made of stainless steel 304 #4 |

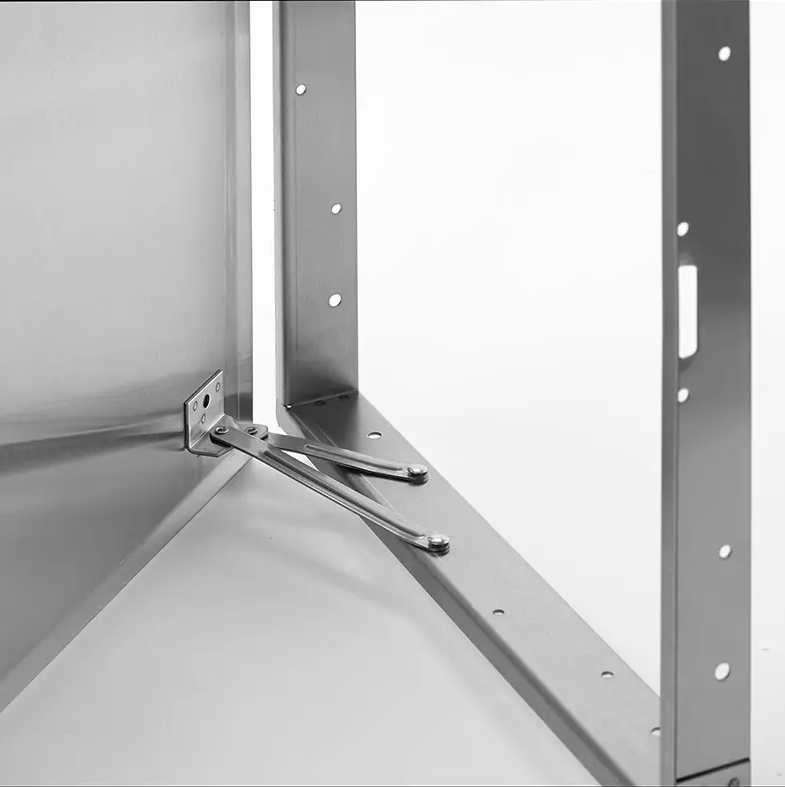

| Hinge: |
Pantograph |
| Finish Available: |
SS: Satin Stainless Steel (# 4 finish)
|
| Gasketing: |
Neoprene around perimeter of door frame is optional (-60) |
| Latching: |
Screwdriver cam latching (-35 standard)
Keyed cylinder cam lock (-10 Optional)
NOTE: Larger size doors require additional latches. Check the product cut sheet on the Downloads tab to see how many (based on door size).
|
| Packaged & Sold: |
Individually boxed |
| |
|
