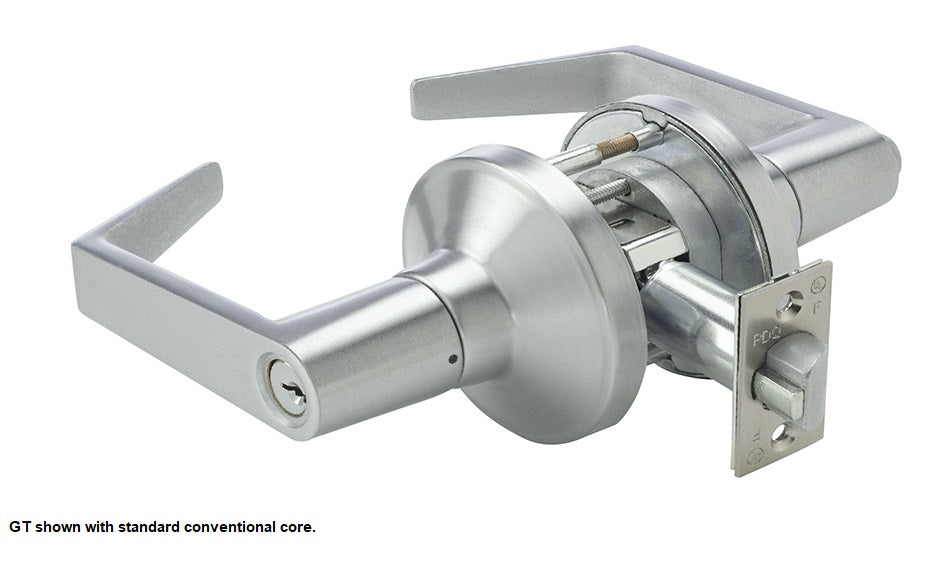

PDQ XGT Series Classroom Intruder Lever Lock, US26D-Satin Chrome Finish

CLASSROOM INTRUDER LOCK: XGT SERIES BY PDQ

Click here for PDQ XGT Series Catalog

This Classroom Intruder Lock is the Classroom Intruder Lock to have on any classroom door for School Safety & Security.  The XGT135 Classroom Intruder Lock has been put to the toughest tests and meets the most stringent building codes.

XGT (Super GT) series SPIRIT from PDQ Industries; assembled in the USA, meeting the requirements of the Buy American Act with a Lifetime manufacturer's limited warranty, certified to ANSI/BHMA A156.2-1996, Series 4000, Grade 1.

Windstorm Resistant Product Listed - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02. Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 1485lbf. Locksets shall be listed by UL / ULC for ratings of “A”  label (3 hours) and less,   UL10C / UBC 7-2 (1997)   positive pressure, for single doors up to 4’0” x 8’0”.

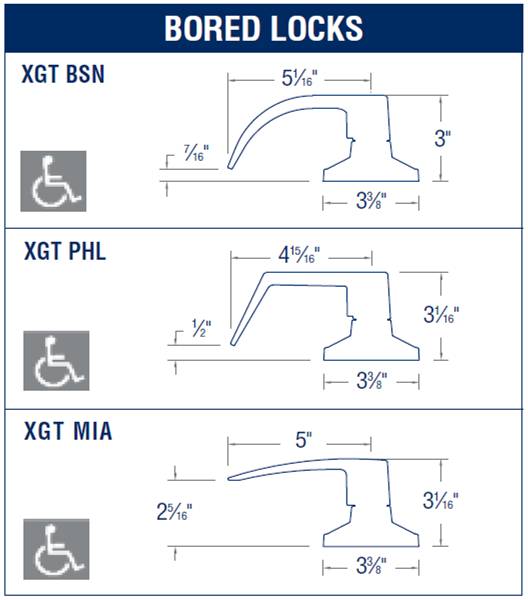

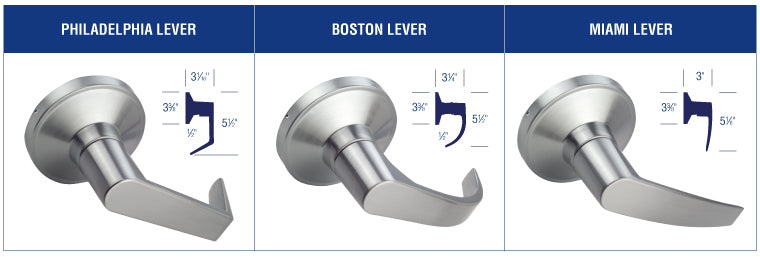

Levers to be solid cast, with no plastic inserts, minimum 5-1/2" overall length with supportive spring power totally independent of chassis or latch unit. Latchbolt to be minimum 9/16” throw and requires only 41° rotation of levers for full retraction. Lockset fasteners to be concealed with through-the-door through-bolt attachment outside the 2-1/8” door prep.

Independent testing confirms 3000 in lbs. of torque resistance .  Additionally, the XGT Series Classroom Intruder Lock has been tested to more than 4 Million cycles (more than 5 times the BHMA Grade 1 requirement) with virtually no lever sag.

Function #:  XGT135 Grade 1 heavy Duty Classroom intruder Lock by PDQ

»  Latchbolt operated by lever from either side.

»  Key in either lever locks outside lever.

»  Key in either lever unlocks outside lever.

»  Inside lever always free.

XGT CLASSROOM INTRUDER LOCK SPECIFICATIONS:

FOR DOORS:   1 3/4" - 2 1/4" thick.  Factory adjusted for 1 3/4".

DOOR PREP:  Fits standard 161 door prep. Through-door thru-bolting.

BACKSET:  2-3/4" only. Guarded.

CASE:  Heavy duty zinc diecast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles.

FRONT:  Stainless steel, wrought brass, or wrought bronze. 2-1/4" x 1-1/8". Beveled 1/8" on 2".

ROSE:  3-3/8" diameter.

STRIKE:  4-7/8" x 1-1/4"(ASA) is standard.

LATCHBOLT:  9/16" Throw. Adjustable front for flat or beveled doors.

HAND:  9/16" Throw. Adjustable front for flat or beveled doors.

TRIM:  Non-handed

KEYS:  Two (2) change keys per lock.

KEYWAYS:  Available for most keyways of most major manufacturers

INTERCHANGEABLE CORE:  Available for all keyed functions, 6 or 7pin, Compatible with Best, Falcon, and Arrow Large Format IC Core Available.  Check with MDIsupply.com customer service at 888-634-3667.

CYLINDER:  Brass 6-pin insert cylinder keyed to 5-pins

FINISHES:  605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D).  Contact MDI Supply customer service for a special quote on any finish now shown above in the drop-down window.

U.L. LISTED:  U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4' x 8') / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”

CERTIFICATIONS:  ANSI A156.2, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.

WARRANTY:  Lifetime manufacturer's limited warranty for all functions

COUNTRY OF ORIGIN:  Assembled in the USA using US and Foreign material.  This product meets the requirements of the Buy American Act.
