BTV Valve Box with Plexiglass Window Access Door x 4" Depth, Hidden Flange, Prime-Painted White.

BTV Valve Box with Plexiglass Window Access Door x 4" Depth, Hidden Flange, Prime-Painted White.

SKU: SKU:AP-BTV4-814814-35

Availability : Usually ships in 2-3 Weeks

Regular price $315.00
Regular price $240.00 Sale price $315.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Box Depth: 4" Deep
View full details

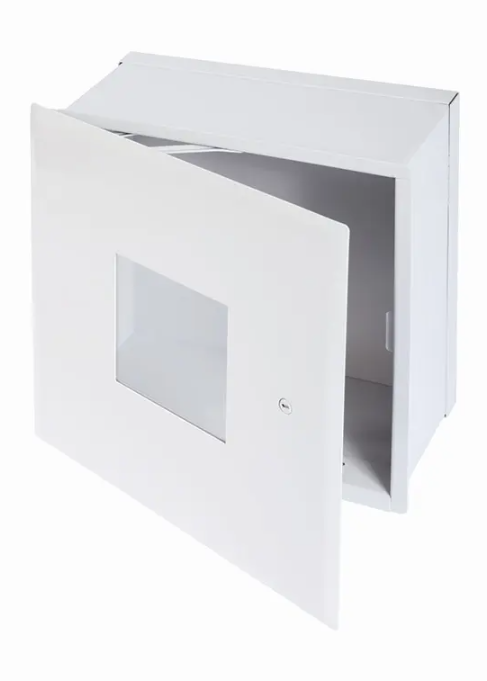

BTV Valve Box with Window Access Door x 4" depth
Designed with a beveled door panel and a screwdriver operated cam latch, the valve box is equipped with a Plexiglass window. Used to protect faucets, valves and water pipes. The beveled panel is aesthetically pleasing and functional.  This door comes prime painted white and optionally, you can add a keyed cylinder cam lock.

A labor saving alternative to doors with drywall flanges.  "No need to mud or plaster."

Often used for hidden storage cabinet in a wall.  Please note this box access panel is NOT A SAFE.

Once ordered this item cannot be canceled, returned or exchanged

Features & Specs of the BTV Valve Box Access Door:

  • Installation:  Quick & Easy - for walls and ceilings
  • Apearance:  Seamless, cohesive appearance
  • Material:  16 gauge steel
  • Window: Plexiglass
  • Frame Depth: 4" in depth, made of cold rolled steel
  • Finish: High quality white powder coat primer
  • Application:  Walls & Ceilings

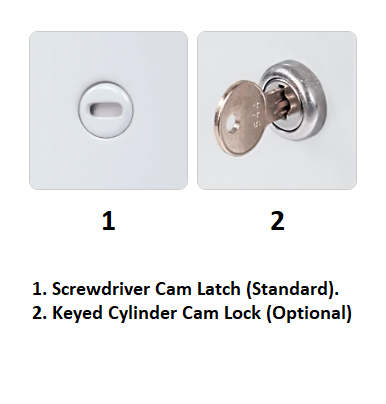

  • Latching/Locking Mechanism:

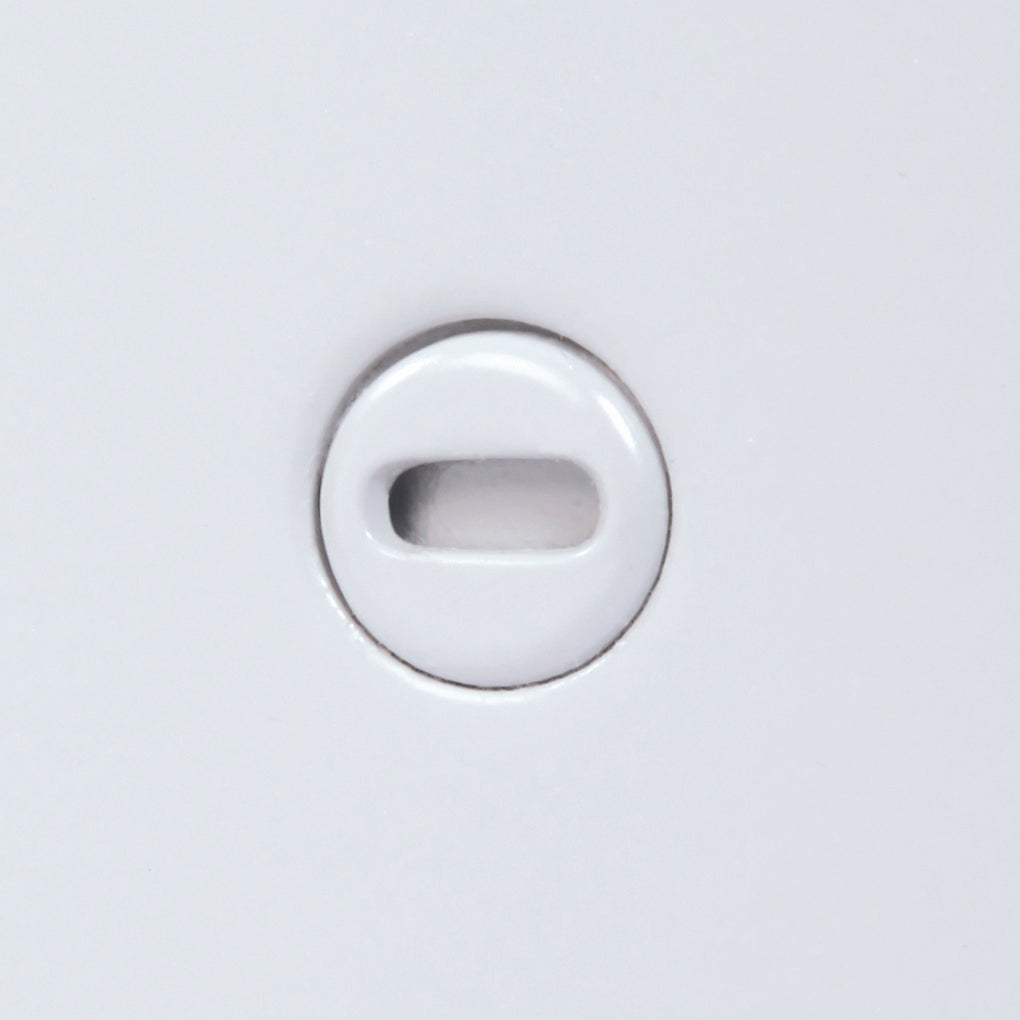

    • Screwdriver operated cam latch (standard).
    • Cylinder Lock/Key is optional.
  • Hinge:  Concealed, exclusive pantograph double arm design.
  • Flange:  7/8" hidden flange
  • Size:  Special sizes available upon request

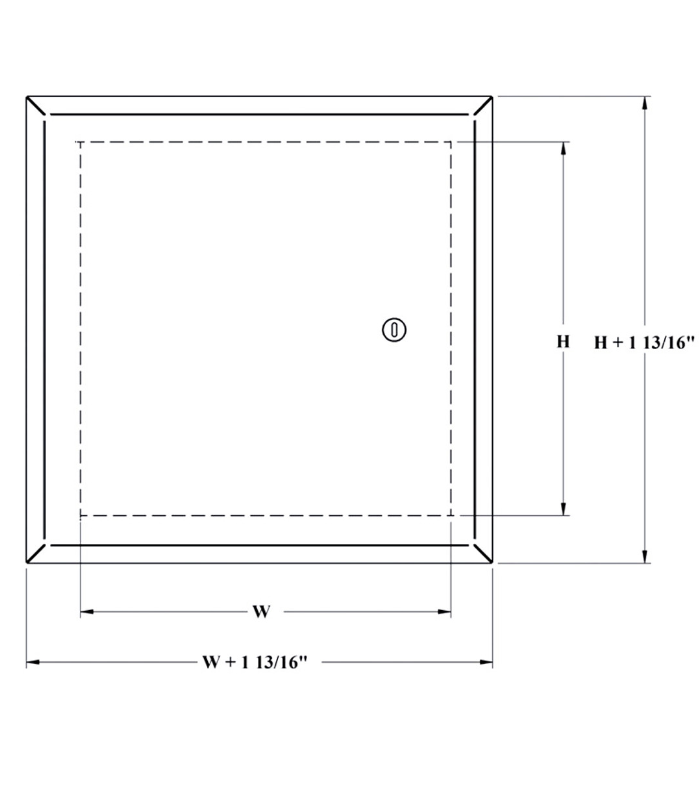

  • Rough Opening: Door sizes + ½ " or + 12.7mm
  • Finish: Powder coat white primer
  • Packaged & Sold: Individually Boxed
