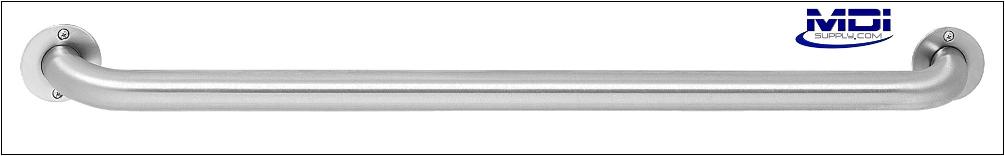

Bradley 817 Series Grab Bar 1 1/2" OD, Exposed Mounting, Satin Stainless Steel

Bradley 817 Grab bar - exposed mounting - ADA Compliant
1 1/2" O.D. Heavy duty grab bar with exposed mounting, satin stainless steel

Click here for Tech Data Sheet

Click here for Product Maintenance

Product Details:

Flanges:
3-1/8" dia. 11 gauge stainless steel, with exposed surfaces in architecturalsatin finish.

Tubing:
1-1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are welded into a single structural unit for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All exposed welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1-1/2" standard safety clearance between wall and bar.

Strength:
When properly mounted, all Bradley heavy duty grab bar systems meet or exceed the requirements of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG), and the Uniform Federal Accessibility Standard (UFAS).

Installation:
Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. (Mounting screws/hardware not included).
