BRADLEY 2922-2873, 2922-2874
Adjustable Motor, Sensor-Operated Aerix Warm Air Hand Dryer
*** Recommended for very high traffic areas ***
Click here for Tech Data Sheet on the Bradley 2922 Series Hand Dryer
MODELS:

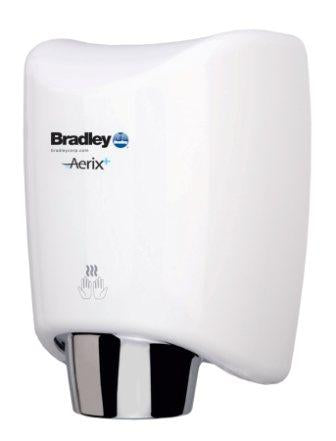

» Standard Model 2922-2873 (aluminum - white)

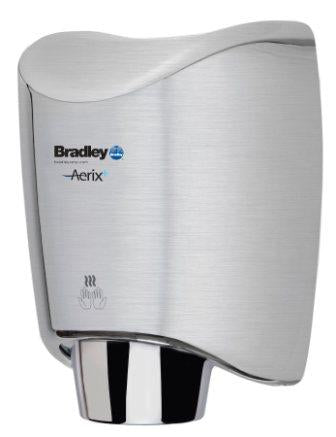

» Standard Model 2922-2874 (stainless steel-satin finish)
PRODUCT FEATURES:
» 10-12 second dry time
» The longest service life of any high speed hand dryer
» Uses 40% less energy than any high speed hand dryer
» Surface Mounted
» ADA Compliant when surface mounted.
PRODUCT MATERIALS:
» 2922-2873 COVER:
die-cast aluminum finished with white epoxy paint with Steritouch®
» 2922-2874 COVER: one-piece stainless steel; satin finish cover fixed to the base plate with tamper proof screws.
» ADJUSTABLE MOTOR: motor is a thermally-protected universal type operating at 23,400 RPM. Adjustable motor control switch has three settings; HI, MED and LOW.
» HEATING ELEMENT: 400 watt heating element constructed of nichrome wire and protected by an automatic resetting thermal cutoff. Heater can be turned ON or OFF via internal switch.
» SENSOR OPERATION: Automatic infrared sensor with a 3 second run-on time and a 30 second vandal shut-off.
» BASE PLATE: Aluminum with four mounting holes and a .88" knockout.
» Installation: Verify all rough-in dimensions prior to installation. Hand dryers require a dedicated 15 amp circuit and must be properly grounded. GFI Circuit protection is recommended. One side of dryer should be mounted to a stud. For proper mounting heights, see installation manual.
» Operation : Place hands 3"–6" below nozzle to activate air flow. Dryer will stop after hands are removed from air flow.
» Guide Specification
: Surface-mounted hand dryer shall have a white cast aluminum cover with epoxy paint (2922-2873) or stainless steel cover with satin finish (2922-2874). All internal air flow paths shall incorporate SteriTouch antimicrobial technology. Hand dryer shall include aluminum base plate, adjustable universal type motor and infrared sensor. Dryer shall operate at 73 - 85 dB while delivering 78-100 CFM air at a velocity of 250 - 265 MPH or 22,000 - 23,320 LFM. Dryer shall produce air at 110 - 140°F. Dryer shall have total power of 400 - 1200 watts with a consumption of 3.3 - 10.0 A.
» Overall dimensions: 12.5" H x 9.3" W x 7.6" D (319mm x 236mm x 192mm).
» Weight: Aluminum: 11.6 lb (5.2 kg); Stainless Steel - 14.2 lb (6.4 kg)
