Best Access Systems 9K30N15DS3 Passage Lever

Best Access Systems 9K30N15DS3 Passage Lever Set
Grade 1 Heavy Duty Passage Leverset

The Best Access Systems 9K30N15DS3 Passage function heavy duty leverset is and  ANSI Grade 1 leverset and is designed for heavy duty applications.

Details and product specs of the Best 9K30N15DS3 Passage Leverset

Series & Type:	9K3 Grade 1 commercial cylindrical heavy duty leverset
Function:	N - Passage Function: Latch operated By:  Rotating the inside lever.  Rotating the outside lever. Outside Lever Locked By: Cannot be locked. Outside Lever Unlocked By: Always unlocked. Inside Lever: Cannot be locked.  Always unlocked.
Lever Style:	15 - Angled Return
Rose Type	D - Style - 3 1/2"
ADA Compliant:	Yes
Backset:	2 3/4"
Keying:	N/A
Handed:	Non-handed
Door Thickness:	1 3/4"
Finish Available:	626/US26D - Satin Chrome;
Cylinder/Core:	N/A.  This is passage function (non-keyed).
UL Listed:	UL Listed for 3-hour A label single swinging doors (4' x 8' ) fire doors.
ANSI/BHMA	ANSI Grade 1 BHMA 9K series–Listed by BHMA for A156.2, Series 4000, Grade 1.
Through-Bolt:	Yes - Through-bolt mounting studs increase torque resistance.
Latch:	1/2” throw deadlocking latch, front: 2 1/4” x 1 1/8”.

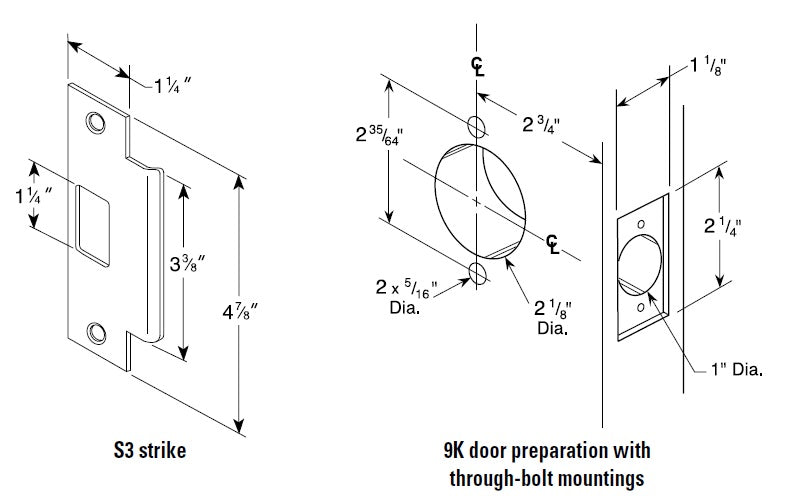

Strike Plate:	S3 - ANSI strike - 4 7/8” x 1 1/4” with curved lip in box. (ANSI A115.2 for 1 3/4” doors).
Mfg Model #	9K30N15DS3-626
MDI Model #:	BEST-9K30N15DS3-626
