Best Access Systems 9K37AB15DS3 Entry Lever x SFIC

Best Access Systems 9K37AB15DS3 Entry Lever x SFIC

BEST Access Systems

SKU: BEST-9K37AB15DS3-626

$419.00
$1,050.00 $419.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Function: AB - Entrance
Lever/Rose: 15D - Angle Return - shown
Cyl/Core: SFIC Prep-Less Core - shown
Finish: 626/US26D - Satin Chrome
View full details

Best Access Systems 9K37AB15DS3 Entry Lever x SFIC Information

Best Access Systems 9K37AB15DS3 Entry Lever Lock
Grade 1 Heavy Duty SFIC Entry Lever Lockset, Less Core

The Best Access Systems 9K37AB15DS3 Entry function heavy duty interchangeable core SFIC lockset allows immediate rekeying at the door simply by using the special control key to replace the core in seconds. ANSI Grade 1 locks are designed for heavy duty applications.

Details and product specs of the Best 9K37AB15DS3 Entry Lever Lock

Series & Type: 9K3 Grade 1 commercial cylindrical heavy duty lockset
Function:

AB - Entry Function:
Latch operated By:
Rotating the inside lever.  Rotating the outside lever–only when the inside push button is out.  Turning the key in the outside lever.

Outside Lever Locked By:
Pushing the inside button.  Pushing and turning the inside button. Turning the button keeps the outside lever locked until the button is turned back.

Outside Lever Unlocked By:
Turning the key in the outside lever (only when the button is not turned).  Rotating the inside lever (only when the button is not turned). Closing the door (only when the button is not turned)

Inside Lever:
Cannot be locked.  Always unlocked.
Lever Style:
15 - Angled Return
Rose Type D - Style - 3 1/2"
ADA Compliant: Yes
Backset: 2 3/4"
Keying: N/A
Handed: Non-handed
Door Thickness: 1 3/4"
Finish Available: 626/US26D - Satin Chrome;
Cylinder/Core: SFIC Prep - Permanent Core Supplied By Others.
OPTIONAL:   Plastic or Green Construction Core.
UL Listed: UL Listed for 3-hour A label single swinging doors (4' x 8' ) fire doors.
ANSI/BHMA ANSI Grade 1
BHMA 9K series–Listed by BHMA for A156.2, Series 4000, Grade 1.
Through-Bolt: Yes - Through-bolt mounting studs increase torque resistance.

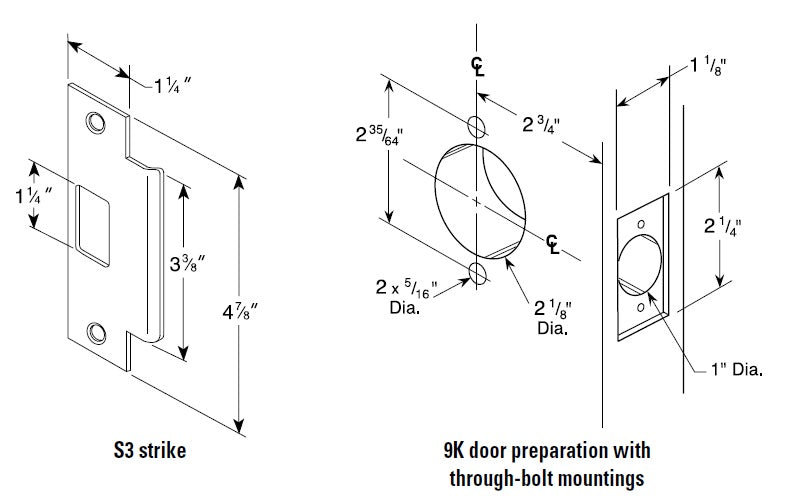

Latch: 1/2” throw deadlocking latch, front: 2 1/4” x 1 1/8”.
Strike Plate: S3 - ANSI strike - 4 7/8” x 1 1/4” with curved lip in box. (ANSI A115.2 for 1 3/4” doors).
Mfg Model # 9K37AB15DS3-626
MDI Model #: BEST-9K37AB15DS3-626
