ADWT 12" x 12" Airtight & Watertight Access Door - Stainless Steel
The ADWT access door is an Air and Watertight stainless steel access door. The Door and frame are welded and gasketed. This access door is ideal for use in laboratories, clean rooms, operating rooms, etc. where an airtight/watertight seal is required.
Product Highlights
- Tested for air infiltration, exfiltration and water penetration
- Air Infiltration : Leakage ≤ 0.01 cfm/sq foot at 6.27 psf – ASTM E 283/E283M-19
- Water Penetration : No leakage at 15.04 psf – ASTM E 331-00(2016)
- Continuous Bulb Trim Gasket

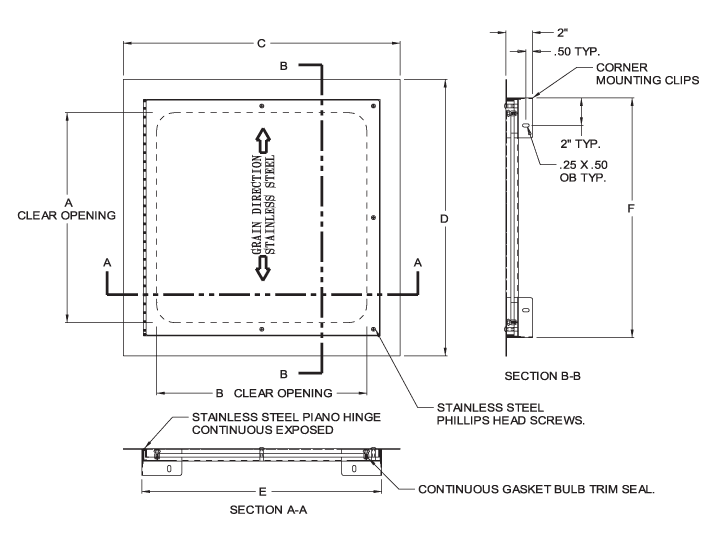

Details and product specs of the ADWT Access Door:
| Material: |
Stainless Steel. Also available in Prime Coat Steel |
| Construction: |
Flush to frame with reinforced edges Stainless Steel or Steel: 16 gauge door; 16 gauge mounting frame |
| Hinge: |
Continuous exposed stainless steel piano hinge |
| Gasketing: |
Continuous Bulb Trim Seal
|
| Standard Latching: |
Stainless Steel phillips head screws - standard
|
| Optional Latch/Lock: |
Stainless steel allen head screws, stainless steel spanner head screws, torx, cylinder lock & key. Please contact MDI for aspecial price quote if the optional latch you want is not sure above in the drop-down window. |
| Finish: |
STEEL: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baking enamel; OR
STAINLESS STEEL: Type 304 - #4 satin polish
|
| MDI Supply Item #: |
AD-ADWT1212-SS |
| Packaged & Sold: |
Individually |
