Arrow RK11 Entry Lock, Grade 2, C-Keyway, US32D-Satin Stainless Steel

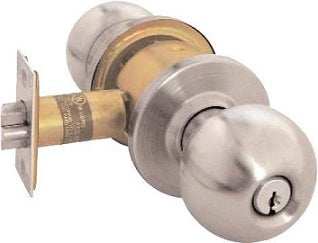

Arrow RK11 Entry Knob Lock

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK Lock Certification:
»  The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging fire doors.

Arrow RK Lock Features
»  Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
»  Backset:  2-3/4" (69.85mm)
»  Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
»  Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
»  Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
»  Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
»  Strike: 4-7/8" ANSI (123.83mm) or 2-3/4" (69.85mm) T strike.
»  Cylinder: Conventional - Solid brass 6 pin. Schlage "C" keyway standard. Other keyways and Interchangeable Core are available by special order.  Call MDI at 888.634.3667 for any other keyway or to inquire about a special order.
»  Keys: 2 brass keys (Keyed function only)
»  Handing: Non-handed
»  Finishes: US32D-Stain Stainless Steel.  All other finishes are special order.
»  Warranty: Five Year Factory Mechanical Warranty
»  Sold/Pricing: Per each lock

 * Keying Option
»  N/A-Keyless:  Standard for all non-keyed locks.
»  Keyed-Different (KD): Standard for all keyed locks.
»  Keyed-Alike (KA): Locks will be keyed alike and supplied w/ 2-keys per lock.
»  Master-Keyed (MK): By special order. **

 ** Keying Notes:
1.  Please note that these keyed options (MK) may add a few additional days to the processing of your order.

Arrow RK Cylindrical Knob Lock, Grade 2
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK Lock Certification:
» The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Arrow RK Lock Downloads
» Click here for the Arrow RK lock catalog
» Click here for the Arrow RK lock template
» Click here for the Arrow RK lock installation instructions
