MATERIAL: 20 GA. (1mm) Cold Rolled Steel.
FINISH: Grey Primer, Beige or Bronze Baked Enamel.

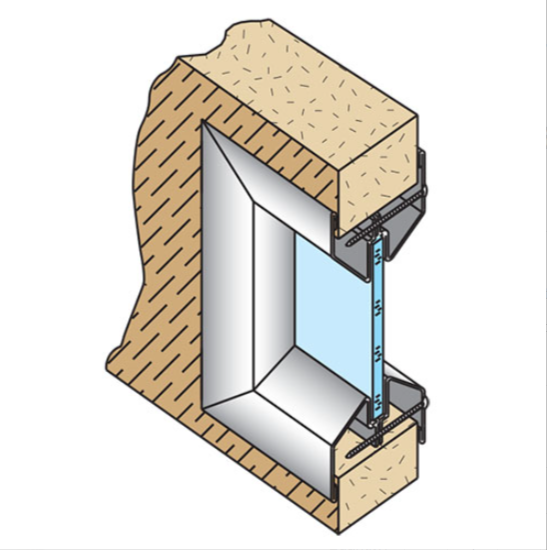

INSTALLATION: Our most popular product is easy to install and provides a low profile, flush to the door look. Uses 1 3/4" (44mm) sheet metal screws that pass through the door cutout, and fastens to the opposite side of the vision frame, thus eliminating the need to drill the door for thru bolts and saving installation time and labor. It also leaves the corridor side of the frame free of fasteners for added security and a cleaner, more aesthetic appearance.
DOOR THICKNESS: For 1 3/4" (44mm) Wood or Metal Doors.
GLAZING: Should be 1/4" (6mm) , 3/16" (5mm) or 5/16" (8mm) fire and/or safety rated with U.L. and/or W.H.I. classification markings. Nominal glazing space of 3/8" (10mm) allows for glazing tape to be used on both sides of the glass.
Glass No Included.AESTHETICS: Tight mitered corners, beveled glass stop and low profile, provide a clean tapered look.
COUNTRY OF ORIGIN: Made in the USA.
IMPORTANT: Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction in your area, to determine appropriate standards.
FIRE TESTED:
with U.L. and W.H.I mark
• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite*Must be used with FireLite Plus or NT and fire listed glazing tape, and be used in an appropriately tested door assembly• Tested to: BS 476.22 and EN-1634
NOTE: For Exterior use, High Humidity or Salt Air application, product must be Galvanized or Stainless Steel. Contact MDI for a Special Price Quote.
