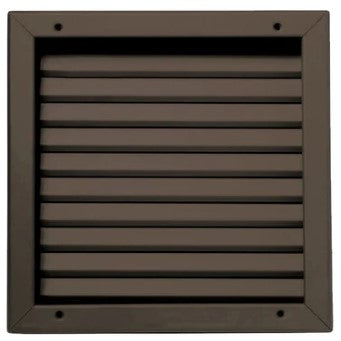

Anemostat FLDL Fusible Link Door Louver Kit
The Anemostat FLDL Fire-Rated Adjustable Fusible Link Door Louver Kit by NGP provides reliable airflow for fire-rated doors while maintaining safety compliance. The adjustable Z-blade design allows controlled ventilation, and the fusible link automatically closes under high heat for added fire protection.
Anemostat Lites & louvers are owned and manufactured by NGP - National Guard Products and are Made in the USA.

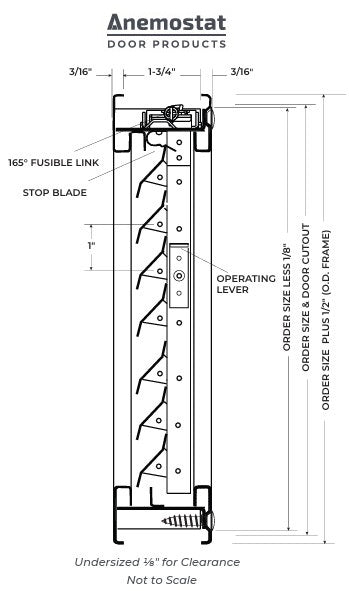

Features & Specs of the Anemostat FLDL Fire Rated Adjustable Fusible Link Door Louver Kit:
- For 1-3/4" Thick Doors, Up to 90 minutes Fire Labled.
- Blades Close When Activated By Fire/Heat
- 18 Ga. Cold Rolled Steel Frame
- 18 Ga. Cold Rolled Steel Adjustable “Z” Blades
- Mitered Corners Secured With Reinforcing Clips
- Stainless Steel Spring
- 165ºF Fusible Link
- #8 X 3/4" Phillips Head SMS
- Free Area 40%
- Size is noted as "width x height."
- Custom sizes are available. Please contact MDI Supply for a quote.
- Please note: Maximum size fusible link door louver kit is 24" x 24". *
*This is maximum dimenison is for any company.
-
Finishes:
- CAB- California Bronze

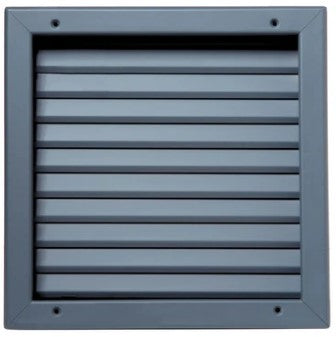

- GPZ- Gray Primer
Certifications:
-
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B: Complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - Certified by UL to ANSI/UL10C, complies with IBC, NFPA 80, and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
Availability:
- CAB-California Bronze: Usually ships in business 2-3 days
- GPZ- Gray Primer: Usually ships in 1-2 weeks
- Other finishes are available by special order. Please contact MDI Supply for a quote.
