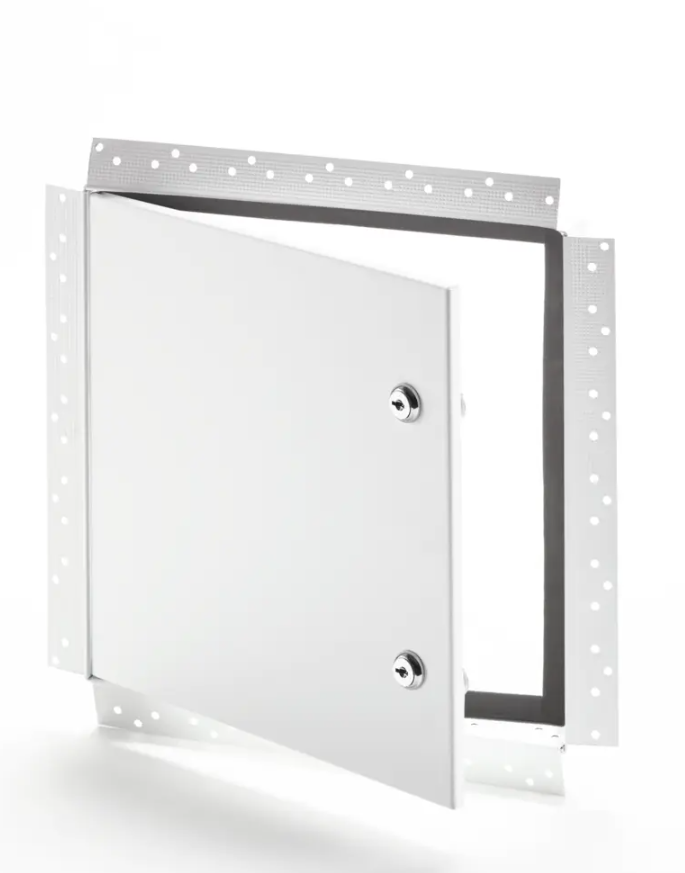

ALN-GYP Anti-ligature Access Door with Drywall Bead Flange

ALN-GYP Anti-Ligature Access Door for Wall & Ceiling Applications
w/ Perimeter Drywall Bead Flange for Taping
w/ Key Operated Cylinder Cam Lock on every Door
w/ Perimeter Gasketing Factory Installed

Ideal for mental health facilities, prisons and other high security environments, this hidden frame door, made of anti-tamper materials is designed to eliminate the risk of self-harm and provide a safe and secure environment

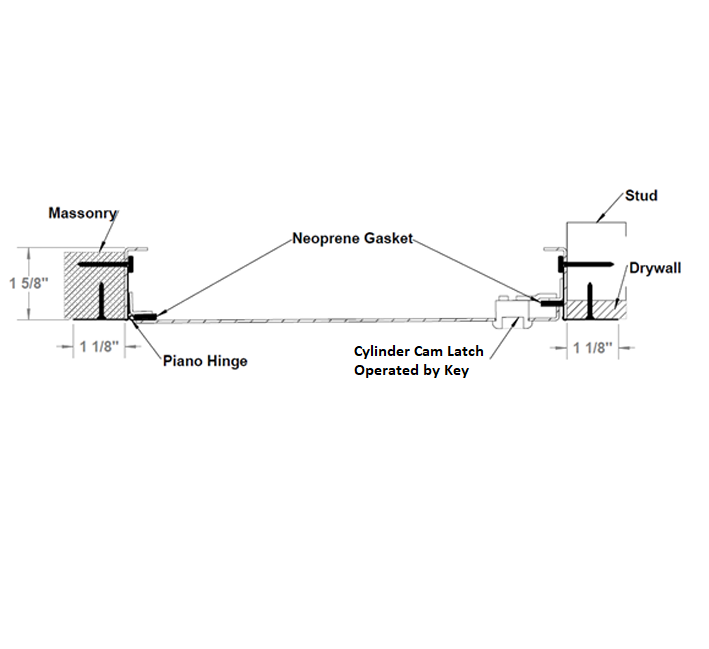

The drywall bead flange, designed for drywall installation, is not exposed once the compound is applied.

Key operated cylinder cam latch, piano hinge, gasket factory installed.

Tecnical Specs & Details of the ALN-GYP Anti-Ligature Access Door:

• Installation:  Walls and ceilings
• Material:  Cold rolled steel
• Locking mechanism:  Key operated cylinder cam latch (2-per door)
• Hinge:  Continuous piano hinge.
• Flange:  22-gauge galvanized steel, 1 ⅛" drywall bead flange
• Frame: 1 5/8" " in depth, made of cold rolled steel
• Gasketing: Neoprene around perimeter of door frame (factory installed)
• Finish: Powder coat primed white

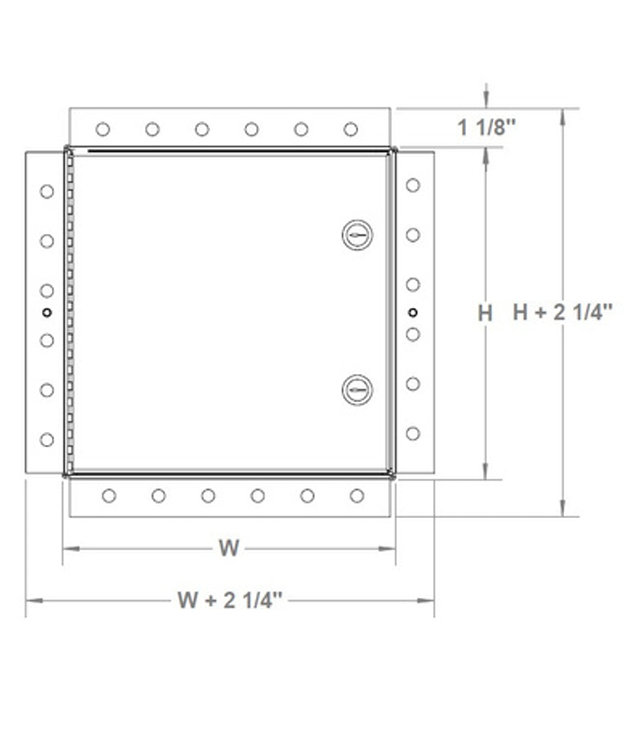

• Rough Opening Required: Door size + ¼ " or + 6mm
• Packaging: Individually wrapped, 1 door per box
