Air Louvers 800A1 24 inch x 60 inch Metal Louver Kit Information

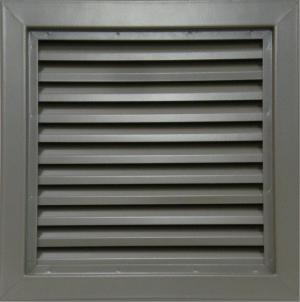

Air Louvers Metal Louver Kit: Model 800A1
...For use in non-fire rated doors that are 1 3/4" thick.

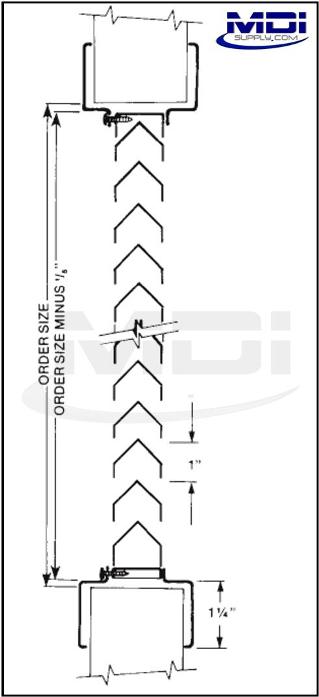

Air Louvers model 800A1 metal louver kit for 1 3/4" thick doors - for non-fire rated applications. Non-vision inverted "Y" blades. Fastening system eliminates mounting holes for thru-bolts saving time and labor and leaves corridor side of door free of fasteners.
This item is special order and once ordered it cannot be canceled, returned or exchanged. All sales final.
Specifications of Air Louvers 800A1 Metal Louver Kit:
|
» |
Material: | 18 gauge CRS frame. |
|
» |
Construction: | Mitered and welded corners. |
|
» |
Door: | "A1" style for 1 3/4" thick doors. |
|
» |
Fasteners: | #8 x 1" Phillips head screws. |
|
» |
Finish: |
Mineral bronze (dark brown) baked on powder coat. Louver kit can be field-painted to desired color.
Optional colors: Finish painted white. * |
|
» |
Free Flow Area: | 50% free area. |
|
» |
Notes: |
1. This product can be field installed into existing doors. Existing doors do require a cut-out prep in the door. 2. Wait until you receive the louver kit to prepare your door for installation of the louver. 3. Do not use this louver kit in fire rated doors. If you require a fire rated louver kit in your door, please see our 1900A fire rated louver kit. 4. Size is "width x height." |
* Ordering "white" adds (+/-) 4-weeks lead-time.
