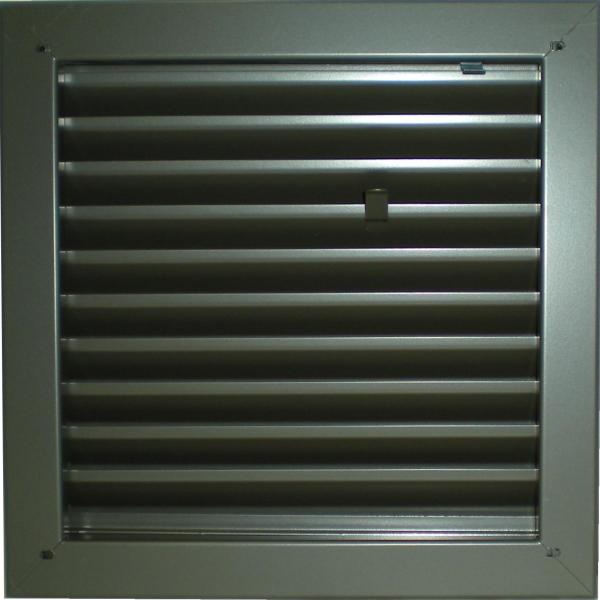

Air Louvers 1900A 24 inch x 24 inch Fire Rated Metal Louver Kit, Dark Brown
Air Louvers 1900A 24 inch x 24 inch Fire Rated Metal Louver Kit, Dark Brown
SKU: SKU:AIR-1900A-2424B
Share
Air Louvers 1900A 24 inch x 24 inch Fire Rated Metal Louver Kit, Dark Brown Information
...For use in fire rated doors.
Specifications
:
» |
Features: | Model 1900-A is a door louver that is listed by U.L. and WHI and is ideal for use in fire doors up to 1 1/2 hour rating. The listing mark is provided in the frame of the louver. |
» |
Material: | 18 gauge CRS frame and louver blades. |
» |

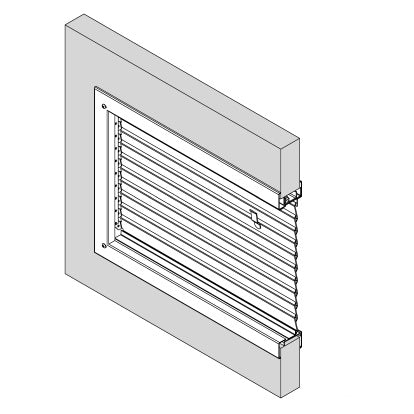

Construction: |
Mitered
and welded corners; screws fastened through prepared frame into louver
core; this mounting method leaves the corridor side of frame free of
fasteners for aesthetic and security purposes.

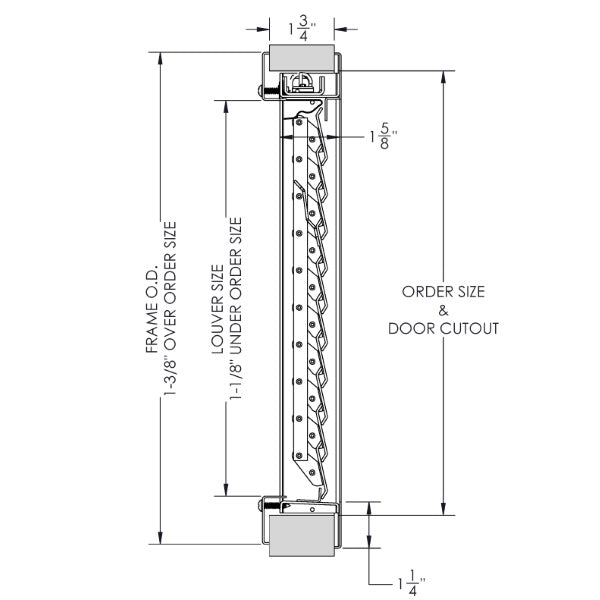

Adjustable blades of 16 gauge cold rolled steel pivot on cadmium-plated steel rivets. The blades are operated by a manual trigger. A spring-loaded fusible link mechanism is incorporated into the design. Upon metlting of the link, the action bar is actutated thereby closing and locking all of the blades. Louver assembly is 1 9/16" deep. » Drilling holes in the door for installation is not required. |
» |
Door: | "For 1 3/4" thick doors. |
» |
Fasteners: | #8 x 3/4" Phillips head screws. |
» |
Finish: | Mineral bronze (dark brown) baked on powder coat. Louver kit can be field-painted to desired color. |
» |
Free Flow Area: | 45% free area. |
» |
Notes: |
1. Wait until you receive the louver kit to prepare your door for installation of the louver. 2. If your door is not fire rated then you may require a non-fire rated louver kit. Please see our 800-A1 louver kit. 4. Size is "width x height." |
