Air Louvers VLFEZ Complete PAK Bevenel Profile Metal Vision Kit with 1/4" Clear Tempered Glass Included, for 1 3/4" Thick Doors, Dark Bronze Finish

Air Louvers VLFEZ TEMP PAK: Complete Package of a Beveled Metal Vision Kit w/ CTG-Clear Tempered Glass and Glazing Tape
For use on non-fire rated doors

The Air Louvers VLF-EZ PAK is a pre-packaged, self-attaching beveled vision lite kit designed for use on 1 3/4" thick doors, featuring a 20-gauge steel, mitered corners, and continuous glass retainers for easy installation. "PAK" signifies it includes the frame, glazing, and glazing tape, simplifying ordering for vision kits for doors. We will take care of sizing the glazing, applying the tape and packaging it. Vision Lite PAKs are available in multiple sizes. Contact MDI for sizes not shown.

Air Louver VLFEZ PAK lite kits are for use on 1 3/4" thick doors only.

This item is special order, therefore, once ordered it cannot be canceled, returned or exchanged

Product Specifications:

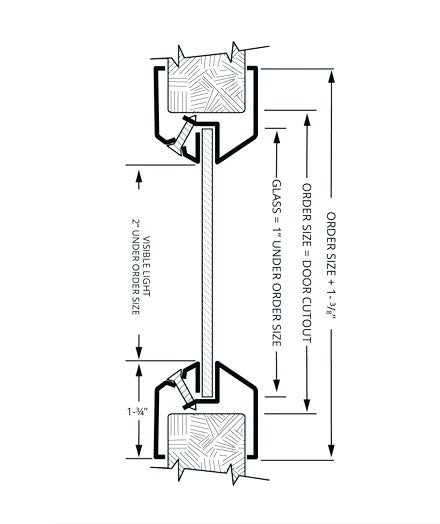

• Order Size (Door Cut-Out Size) - 2" = Viewable Glass Size
• Material: 20 gauge cold rolled steel
• Construction:  1 3/4" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes on non-corridor side
• Standard Finish: Mineral bronze powder coat (Dark Bronze/Dark Brown)
• Glass: 1/4" thick CTG-Clear Tempered Glass (For use on non-fire rated doors)
• Fasteners: Flathead Phillips screws to match finish
• Door Thickness: For use on 1 3/4" thick doors only

• Finish: Dark Bronze (Mineral Bronze/Dark Brown)

• Special order sizes are available. Contact MDI Supply for a quote.
• Complete Kit is Made in the USA
• This model lite kit has a beveled trim which is architecturally and aesthictally pleasing, but can present some challenges with hardware going across teh vision kit (example: exit devices).

Size Note:
If you don't see a size you need, give us a call at 888.634.3667 or send us an email to orders@mdisupply.com and we'll be happy to provide a price quote.  Please include your full billing & shipping info, contact person and phone number.

What's Included in the PAK:

• The Air Louvers VLFEZ Complete PAK vision kit
• 1/4" thick CTG-Clear Tempered Glass (For use on non-fire rated doors)
• Glazing Tape
• Fasteners are included: #8 x 1" Flathead Phillips SMS

Testing Certifications & Code Compliance: Meets CPSC 16CFR 1201 (CAT I & II) Impact Safety Rated

Availability:  Usually Ships in 2-3 Business Days After Order
