The VLFEZHRC Hurricane Series Metal Vision Kit features a lite kit model that is complete with glazing, sealant and o-rings for maximum weather resistance. This exterior-grade vision lite is fabricated from galvanneal steel and painted with a durable factory-applied powder coat. This PAK kit is Florida Building Code Approved for installation in Hurricane Zones/HVHZ. This lite kit and glazing are Severe Windstorm Approved/Hurricane Rated. This product is Made in the USA.
Beveled Vision Lite With Continuous Glass Retainer. Recommended for Applications Requiring Safety From Wind-Borne Debris. Includes Tested and Approved Polycarbonate Glazing and Caulking. Florida Building Code Approved
Installer Note: Glazing & Caulking included with Vision Frame
Application: For use in exterior doors that are hurricane rated or doors that are in high velocity wind zones.
SPECIFICATIONS:
-
Material: 20 gauge galvanneal steel frame. Minimum size 4” x 4”, maximum size 23 5/8” x 61 3/8”. See testing information below.
-

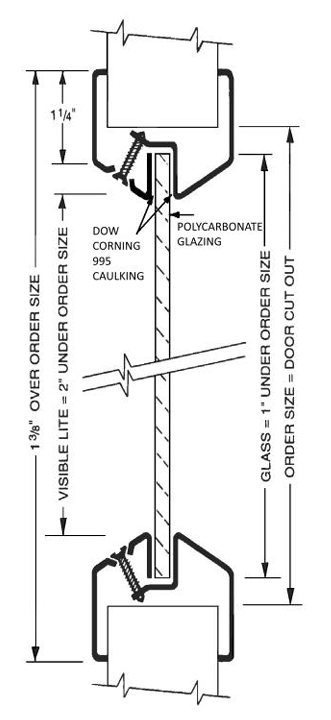

Construction: 1-1/4” trim with mitered and welded corners, beveled return, and countersunk mounting holes in the bevel. Screws fasten from room side into pre-punched mounting holes. This mounting method leaves corridor side of frame free of fasteners for aesthetic and security purposes.
-
Finish: Bronze (Dark Brown)
-
Door Thickness: 1 3/4"
-
Fasteners: #8 x 1” flathead phillips head screws to match finish.
-
Glazing: 1/4” Lexan® Polycarbonate glazing is included. Glass size is 1” under order size.
-
Caulking: Dow Corning 995® for caulking on both sides of glazing
- Made in the USA.
RATINGS & CERTIFICATIONS:
HURRICANE RATING
- Severe Windstorm Testing: Intertek Warnock Hersey listed and labeled to ASTM E330, E1886, E1996, ANSI 250.13 TAS 201, TAS 202, TAS 203
- Design pressure +/- 55 psf, Impact resistance 350 ft-lbs, Missile D, Wind zone 4
-
Florida Building Code Approval File # FL 13187
- Certified by Warnock Hersey Testing Labs
-
Limits of Use:
-
Approved for use in HVHZ: Yes
-
Approved for use outside HVHZ: Yes
-
Impact Resistant: Yes
-
Design Pressure: +55/-55
-
Other: This application is for the glass frame only to be used as a component of an approved assembly. See Certification Agency Certificate for applicable product ratings.
