AHD Standard Flush Steel Access Door, Visible Flange, Prime Painted

AHD Standard Flush Steel Access Door, Visible Flange, Prime Painted

Metropolitan Door Industries

SKU: AP-AHD-0606

Availability : Usually ships the next business day, but adding gasketing adds 1-week

$26.00
$78.00 $26.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Frame: Standard - Visible Flange
Latch Info: Small doors receive one latch. Larger doors may receive more than one latch. See Tech Data Sheet for more info.

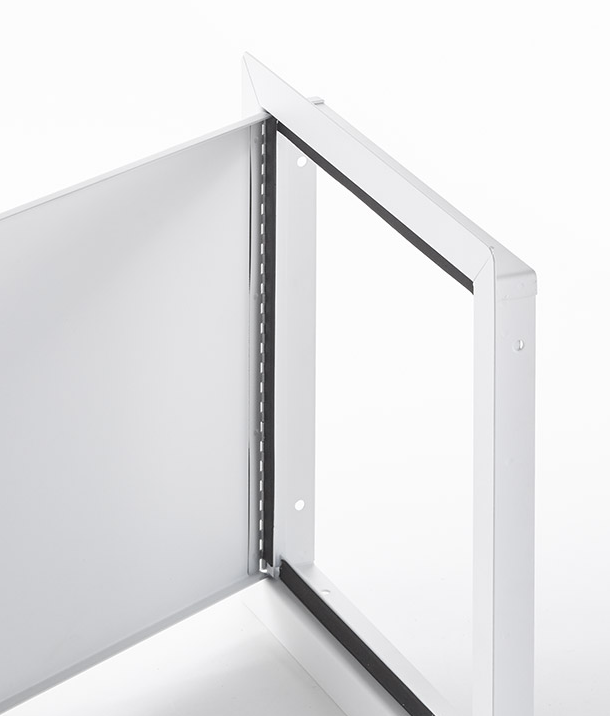

Click for image with Optional Gasketing

Tech Data Sheet

View full details

AHD Standard Flush Steel Access Door, Visible Flange, Prime Painted Information

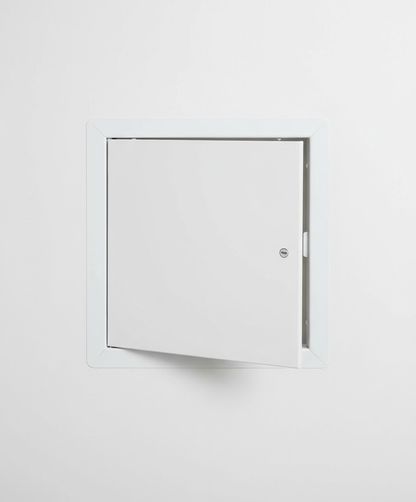

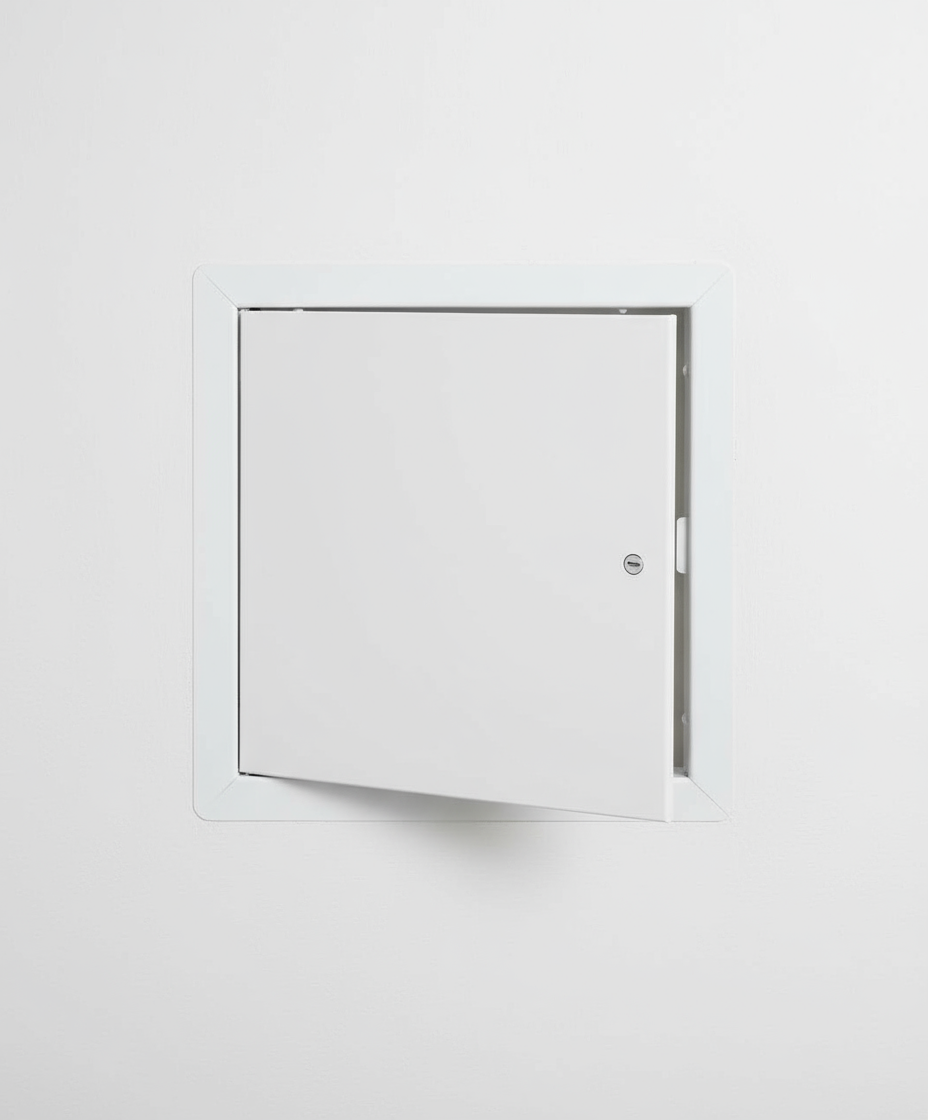

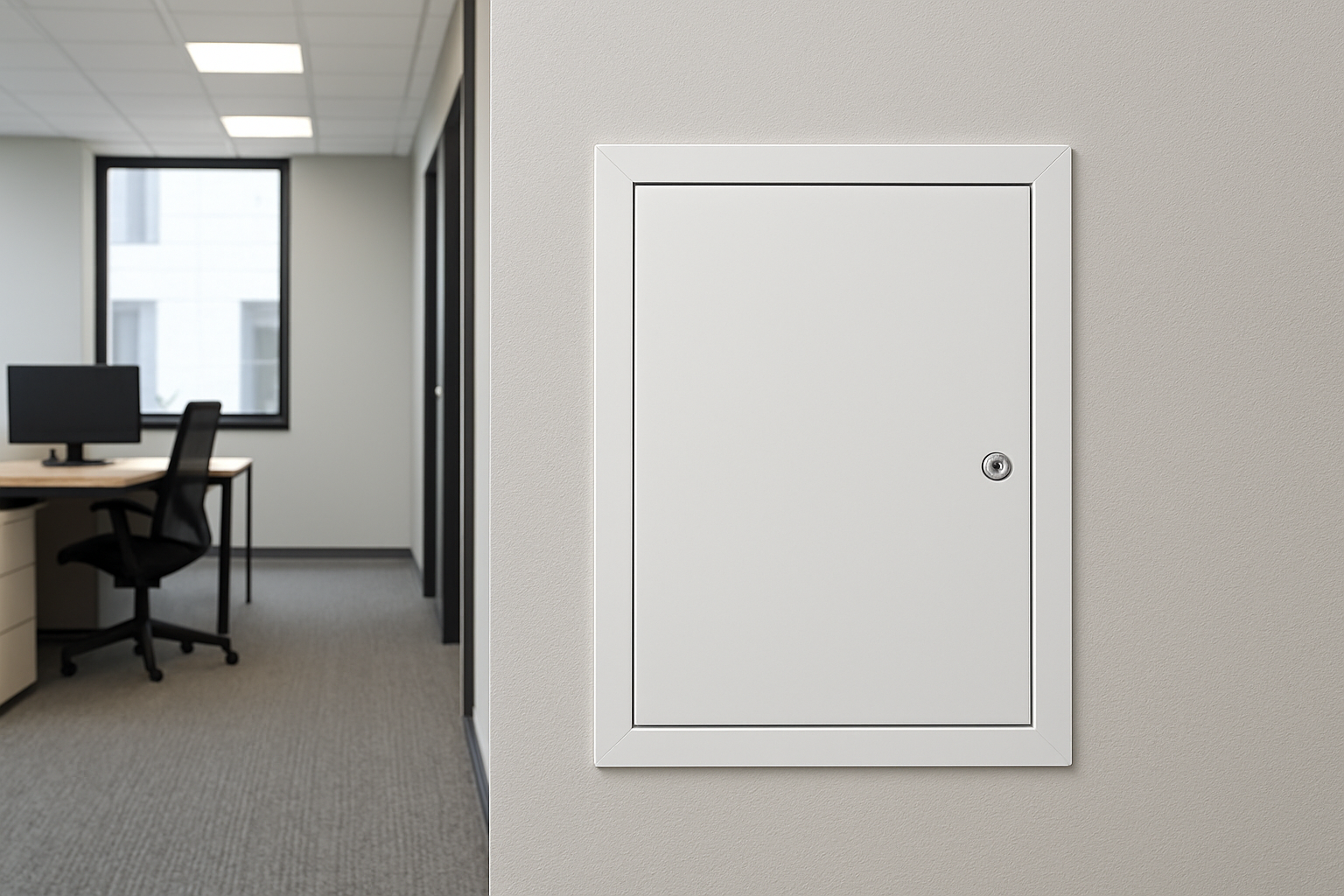

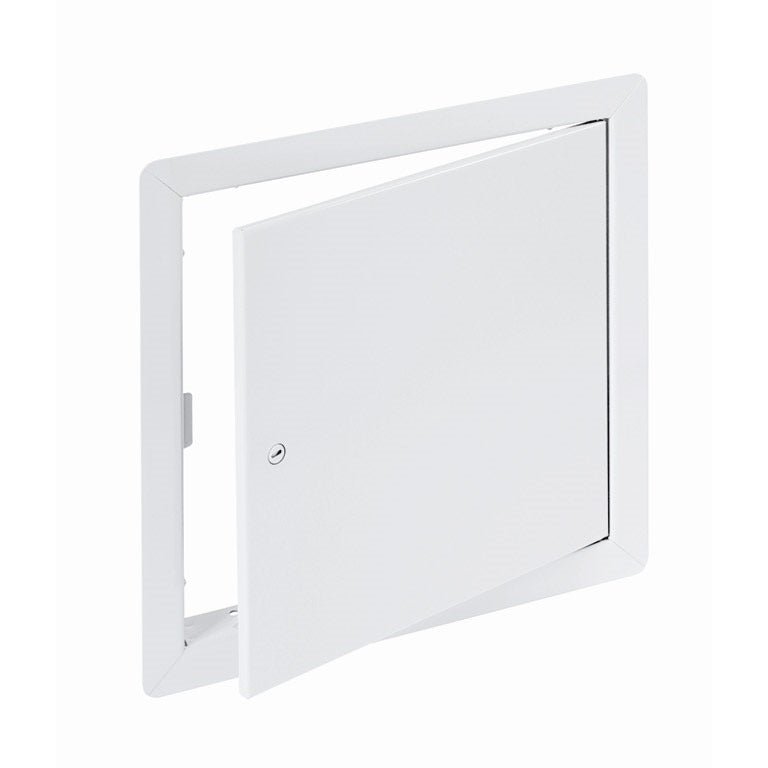

Flush Universal Steel Access Door with Exposed Flange

Designed for quick and easy installation on non-fire rated walls and ceilings made of any type of materials.  The door is standard as 16 gauge steel and a screwdriver cam latch.

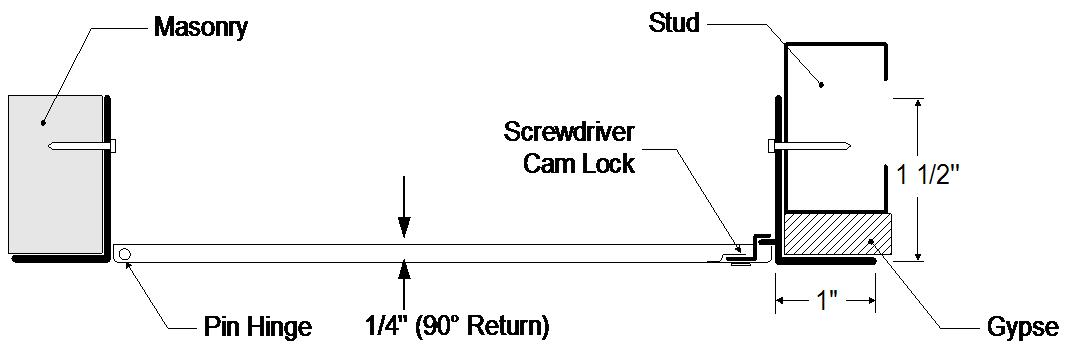

Details of the AHD Flush Steel Access Door:

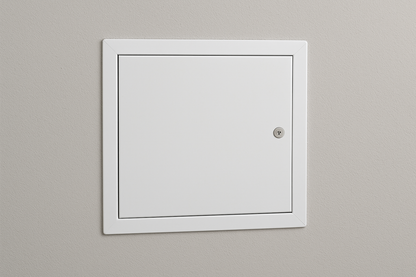

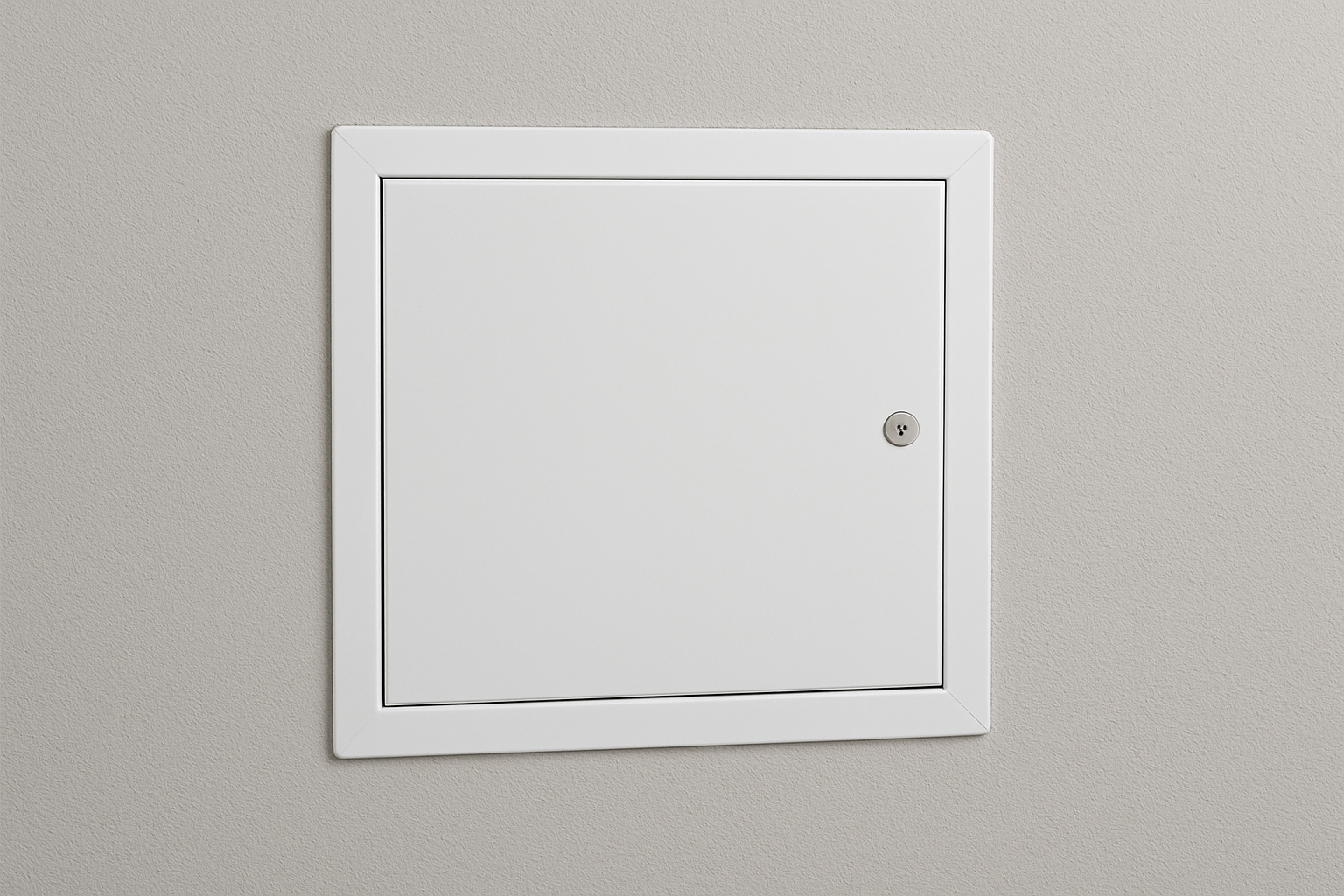

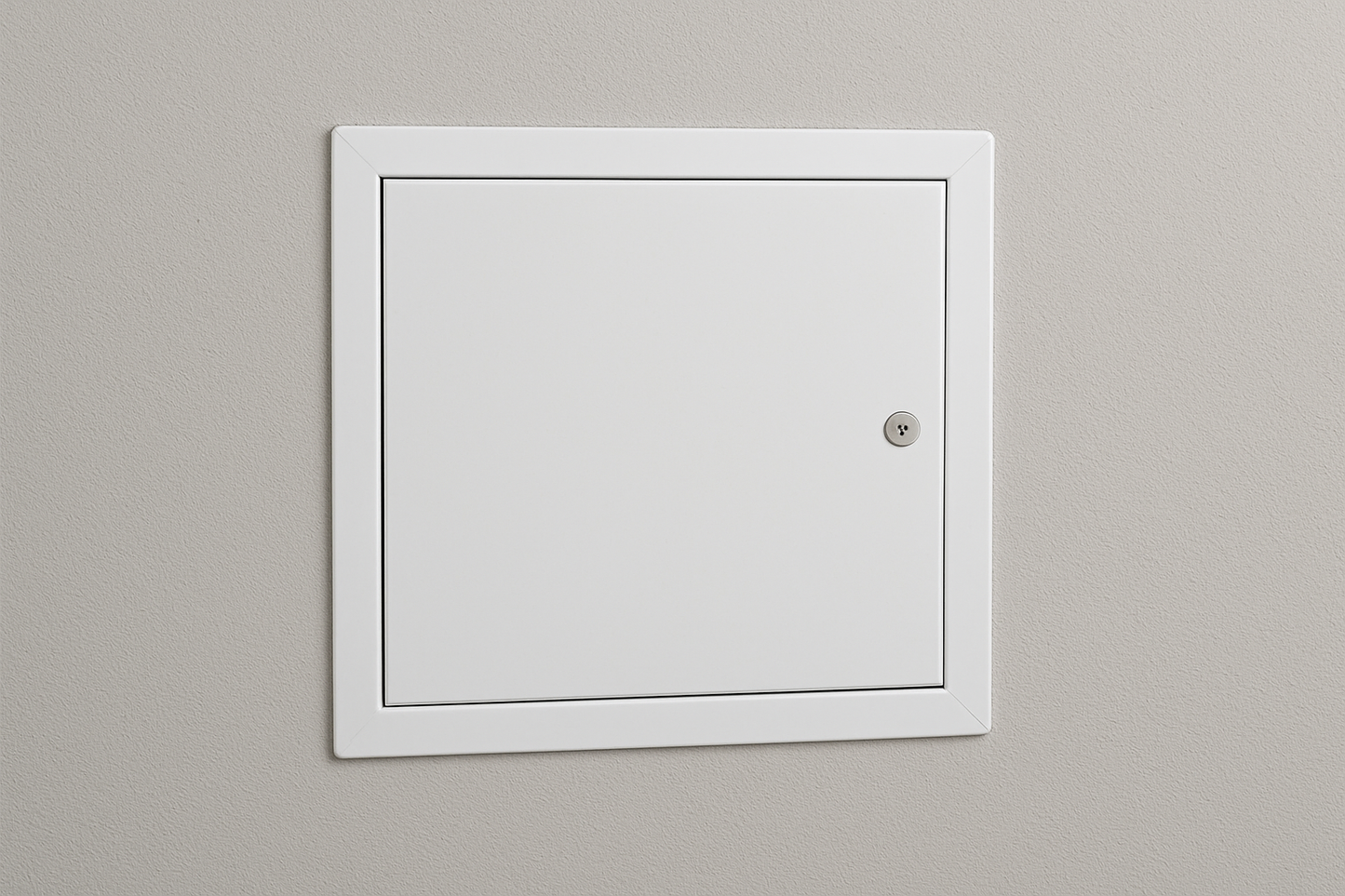

  • Installation:  Walls and ceilings
  • Material:  16-gauge cold rolled steel.
  • Locking mechanism:  Screwdriver-operated cam latch is standard.  A keyed cylinder cam lock is optional.
  • Frame: 1½" in depth.

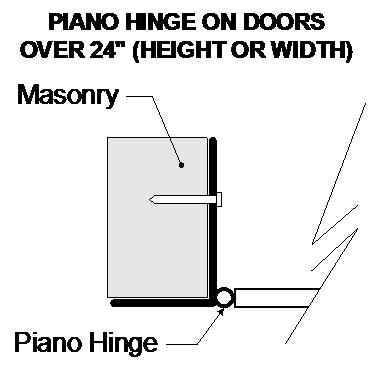

  • Hinge:  Hot rolled and stamped steel pin hinge.
  • Flange:  1" exposed flange.
  • Gasketing: Factory installed gasketing is optional.
  • Rough Opening Requried:  Door sizes + ¼ " or + 6mm
  • Finish:  Powder Coat Primed White
  • Special Sizes:  Other sizes available upon request
  • Packaged: Individually boxed

Note:
Small size doors receive one latch.  Larger doors may receive more than one latch.  See Tech Data Sheet for more info.
