Standard Flush Steel Access Door w/ Cylinder Cam Key Lock, Visible Flange, Prime Painted, Item AHD-10

AHD-10 Steel Access Panel

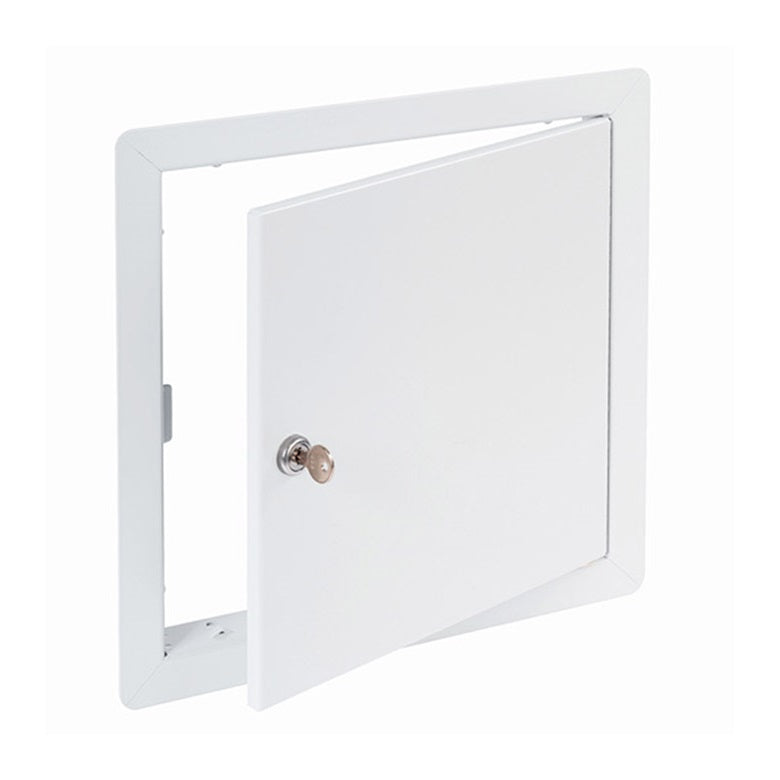

Flush Universal Steel Access Door with Exposed Flange & Keyed Cylinder Cam Lock

Designed for quick and easy installation on non-fire rated walls and ceilings made of any type of materials.  The door is standard as 16 gauge steel and comes with a keyed cylinder cam lock.

Details of the AHD-10 Flush Steel Access Door:

• Installation:  Walls and ceilings
• Material:  16-gauge cold rolled steel.

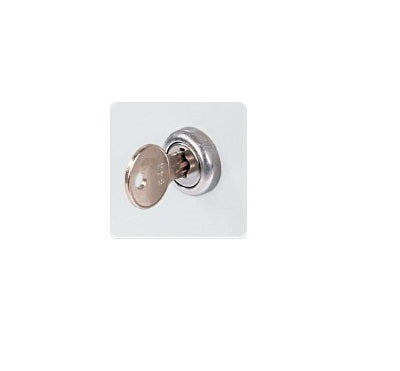

• Locking mechanism:  Keyed Cylinder Cam Lock.  Most doors have one cylinder cam lock.  Taller doors will receive two cylinder cam locks. See Tech Data Sheet for more info.
• Frame: 1 1/2" Depth
• Hinge:  Hot rolled and stamped steel pin hinge. Doors taller than 24" or doors that get gasketing added also get a piano-style hinge.
• Flange:  1" exposed flange.
• Gasketing: Factory installed gasketing is optional.
• Rough Opening Requried:  Door sizes + ¼ " or + 6mm
• Finish:  Powder Coat Primed White
• Special Sizes:  Other sizes available upon request
• Packaged: Individually boxed

Note:
Doors usually ship in 1-week after order.
